Rear Door Latch: Notes

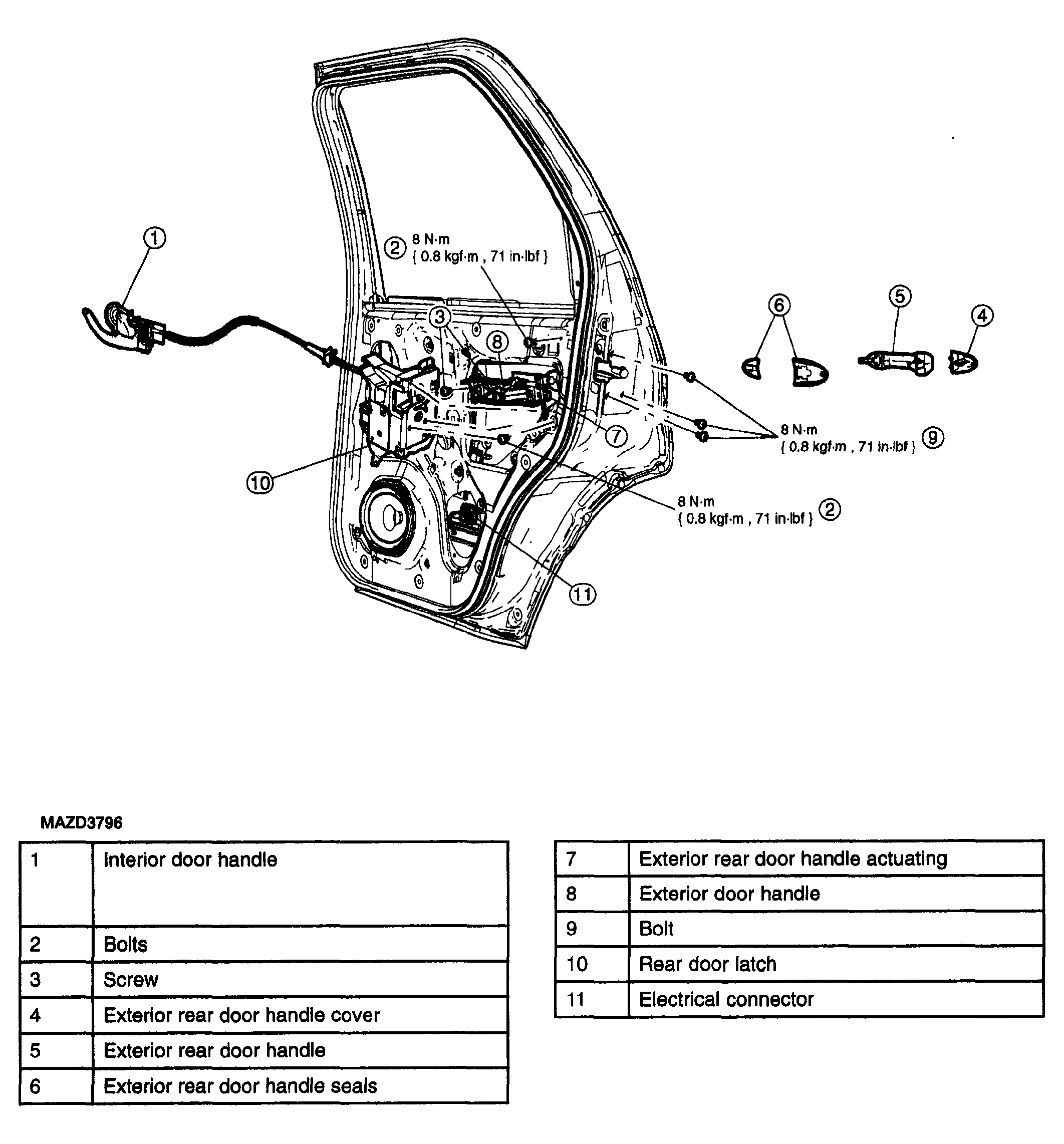

Fig 1: Rear Door Latch With Torque Specifications
G04322765Courtesy of MAZDA MOTORS CORP.
