Ignition Switch: Notes

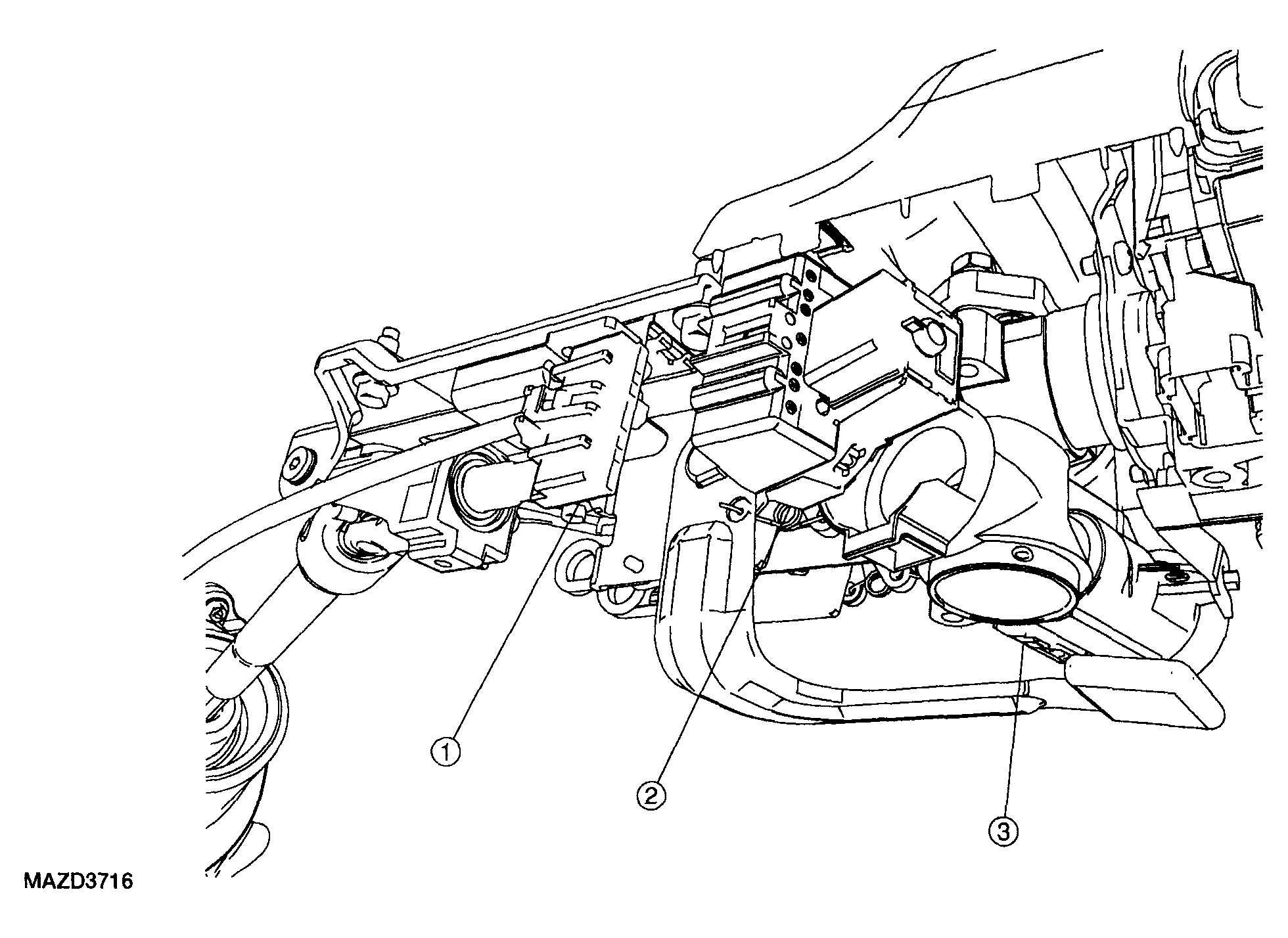

Fig 1: Identifying Ignition Switch
G04322965Courtesy of MAZDA MOTORS CORP.
  1. Remove the parts in the order indicated in the following illustration and table.
    IGNITION SWITCH REFERENCE CHART

    1 Electrical connector
    2 Ignition switch
    3 Lock cylinder
