Charging System
›
Generator - 2.3L
›
Notes
Generator - 2.3L: Notes

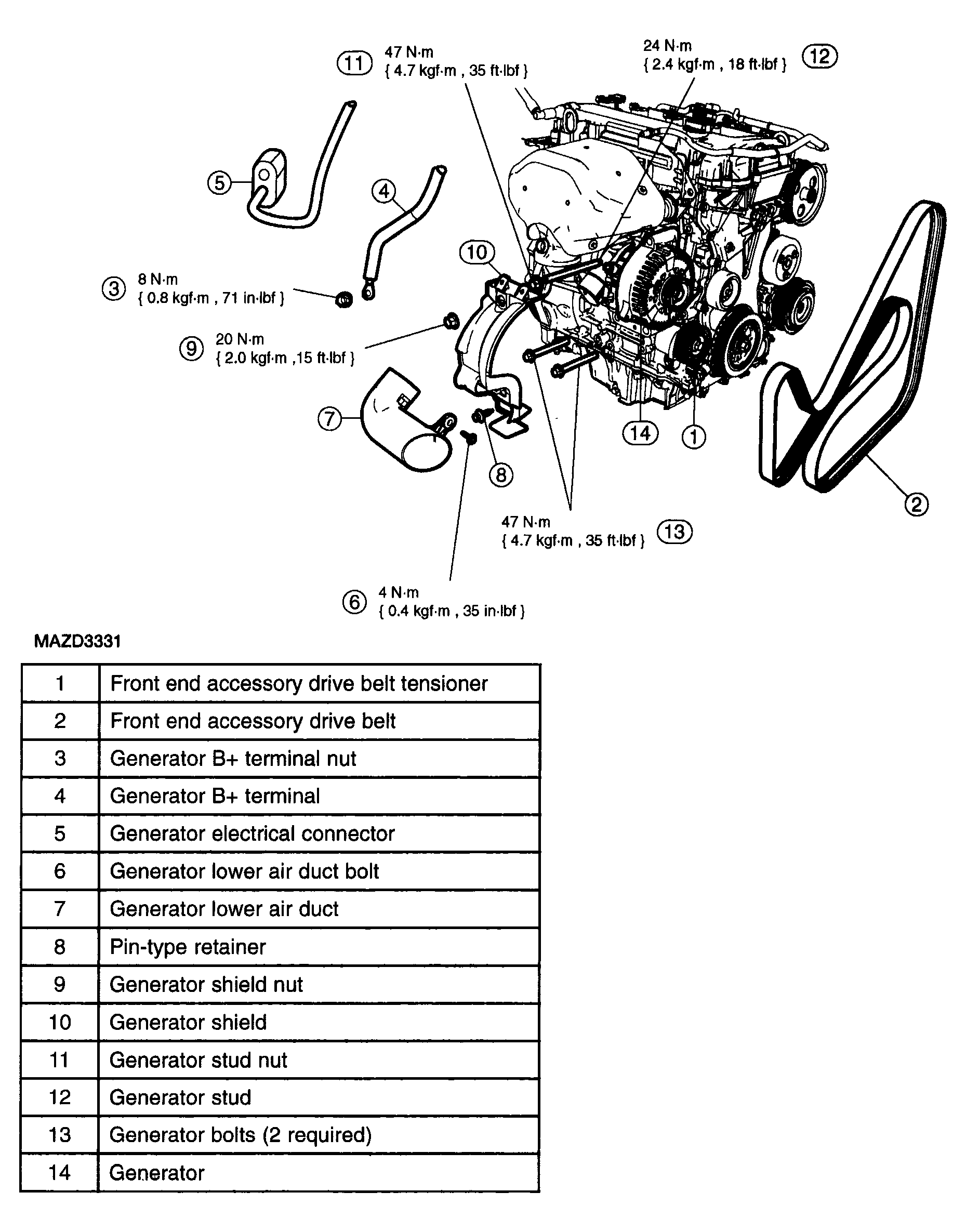

Fig 1: Removing/Installing Generator With Torque Specifications - 2.3L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
