Camshaft Position (CMP) Sensor - 2.3L: Notes

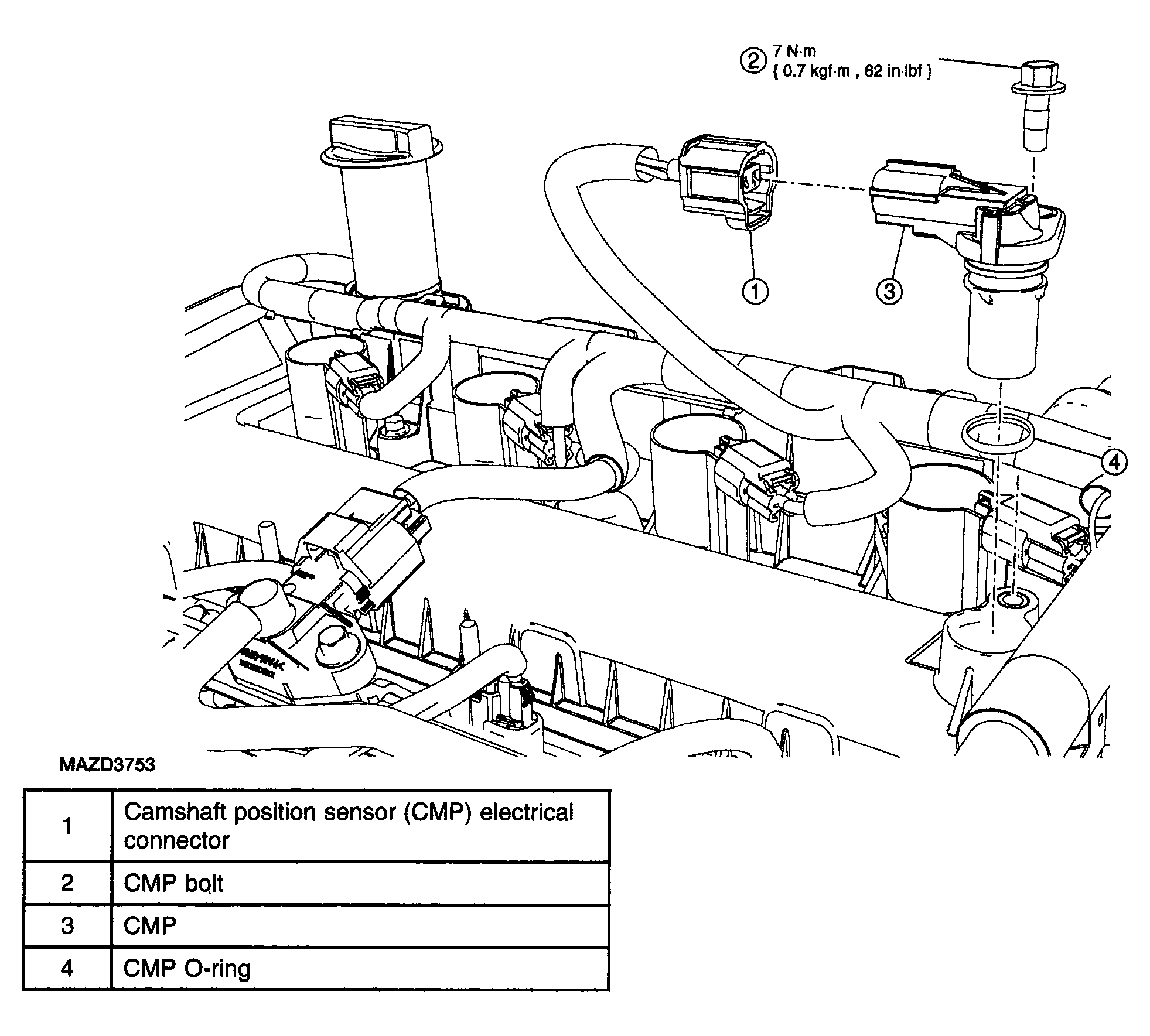

Fig 1: Removing/Installing Camshaft Position (CMP) Sensor With Torque Specifications - 2.3L
G04320310Courtesy of MAZDA MOTORS CORP.
