Removal and Installation

  1. Disconnect the negative battery cable. See BATTERY DISCONNECT .

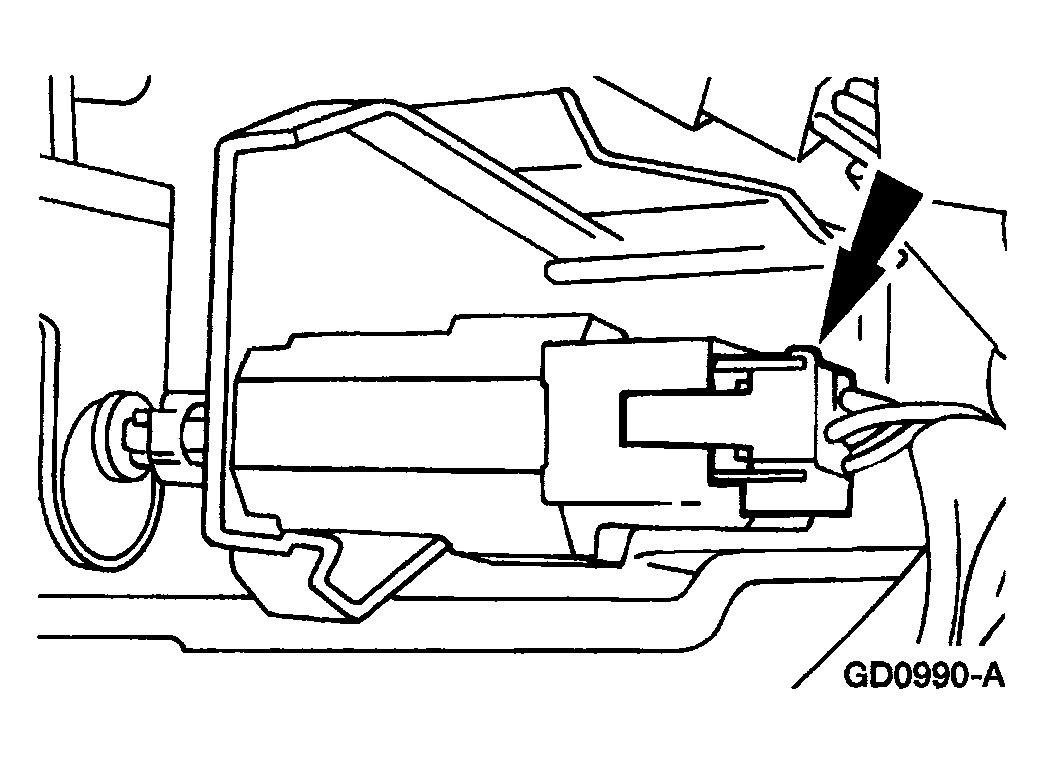

    Fig 1: Disconnecting Clutch Pedal Position (CPP) Electrical Connector
    G04320342Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the clutch pedal position (CPP) electrical connector.

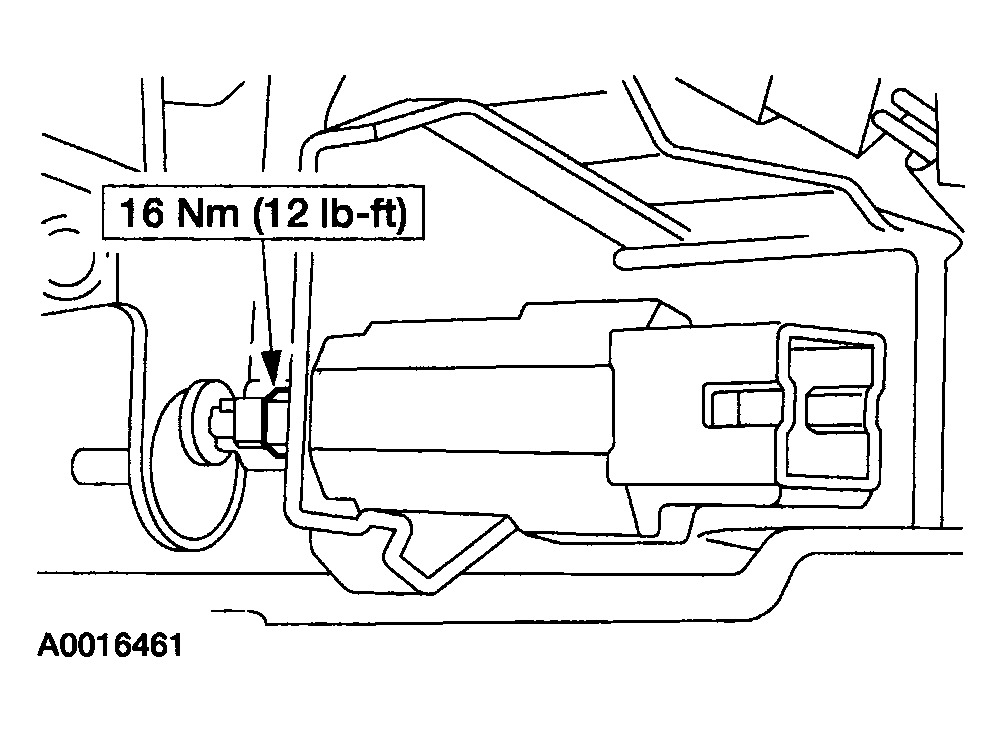

    Fig 2: CPP Locknut And Switch With Torque Specifications
    G04320343Courtesy of MAZDA MOTORS CORP.
  3. Remove the CPP locknut and the switch.
  4. To install, reverse the removal procedure.
