Fuel Charging Wiring Harness - 3.0L (4V): Notes

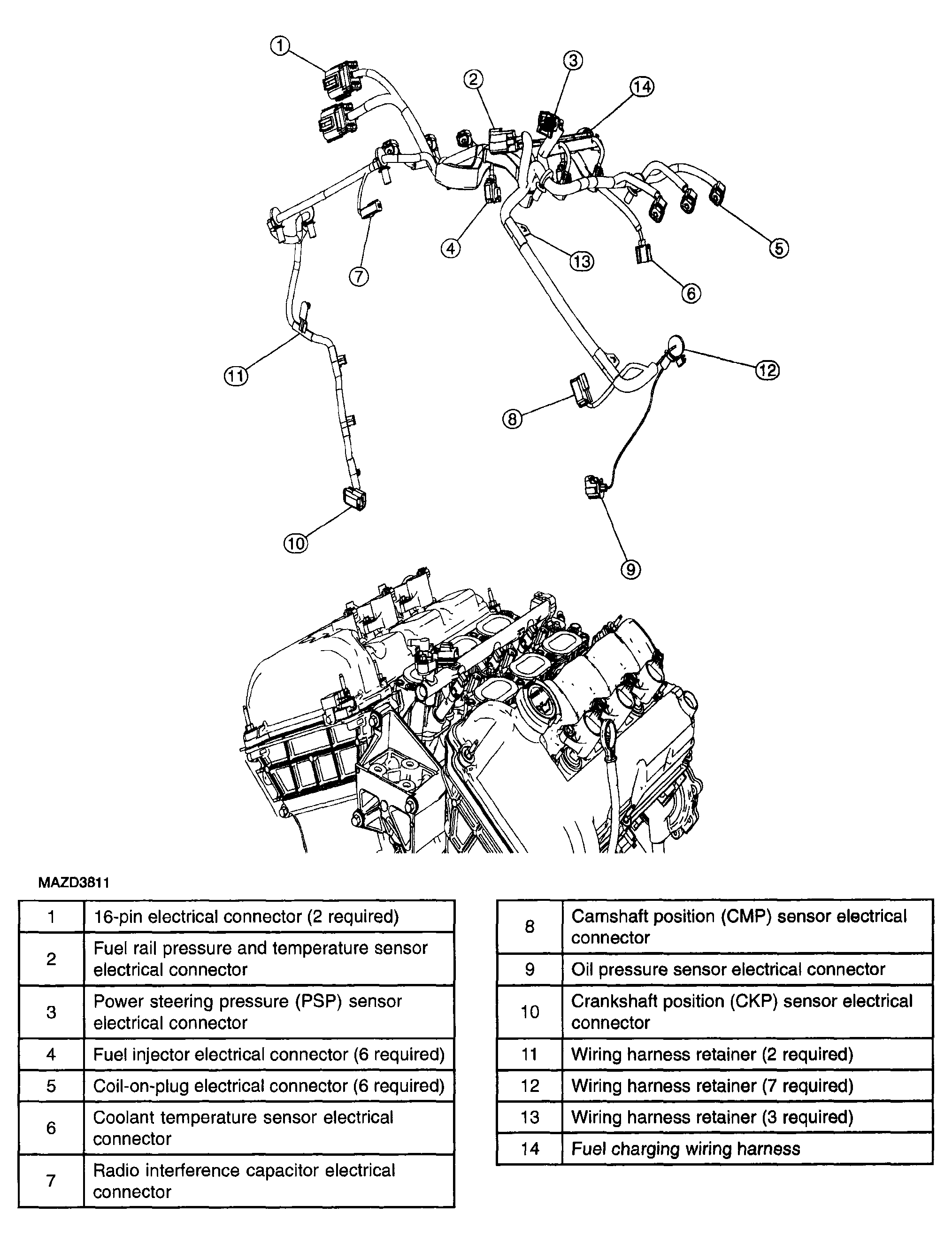

Fig 1: Removing/Installing Fuel Charging Wiring Harness - 3.0L (4V)
G04320344Courtesy of MAZDA MOTORS CORP.
