Heated Oxygen Sensor (Ho2S) And Catalyst Monitor Sensor - 2.3L: Notes

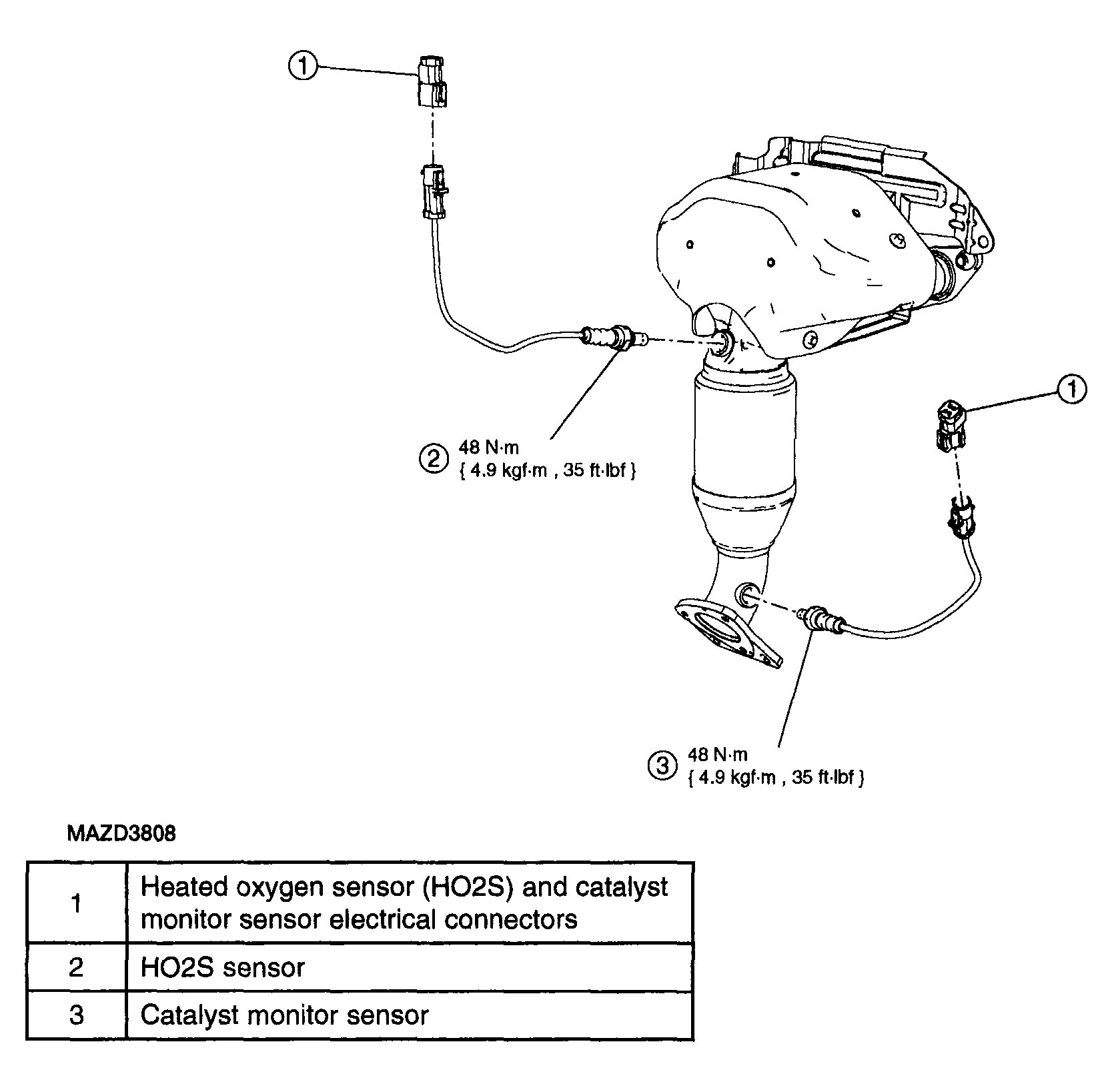

Fig 1: Removing/Installing Heated Oxygen Sensor (HO2S) And Catalyst Monitor Sensor With Torque Specifications - 2.3L
G04320333Courtesy of MAZDA MOTORS CORP.
