Input Shaft: Notes

WARNING: This page is about a different variant/trim than selected.

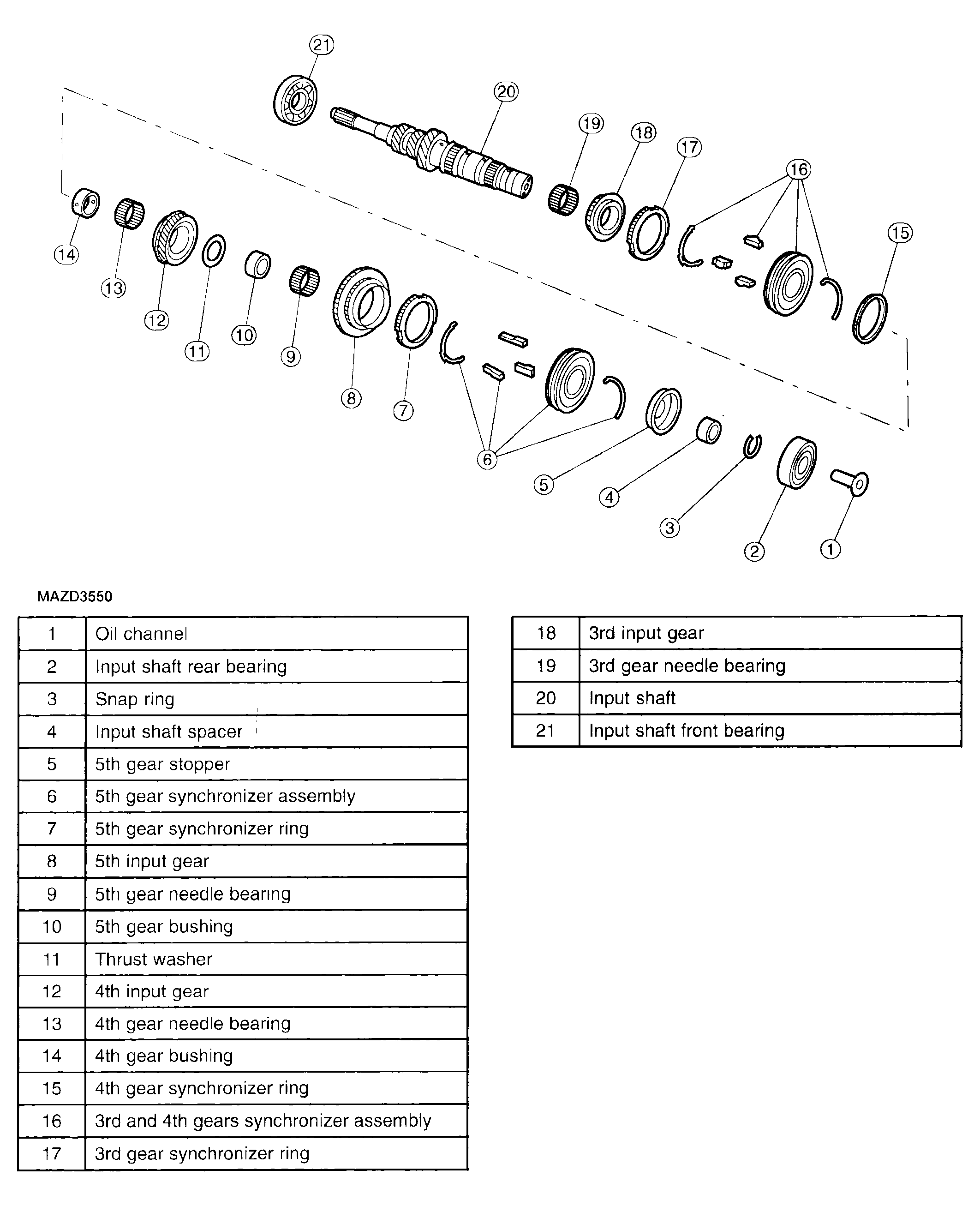

Fig 1: Exploded View Of Input Shaft
G04320893Courtesy of MAZDA MOTORS CORP.
