Transaxle Rear Support Insulator: Notes

WARNING: This page is about a different variant/trim than selected.

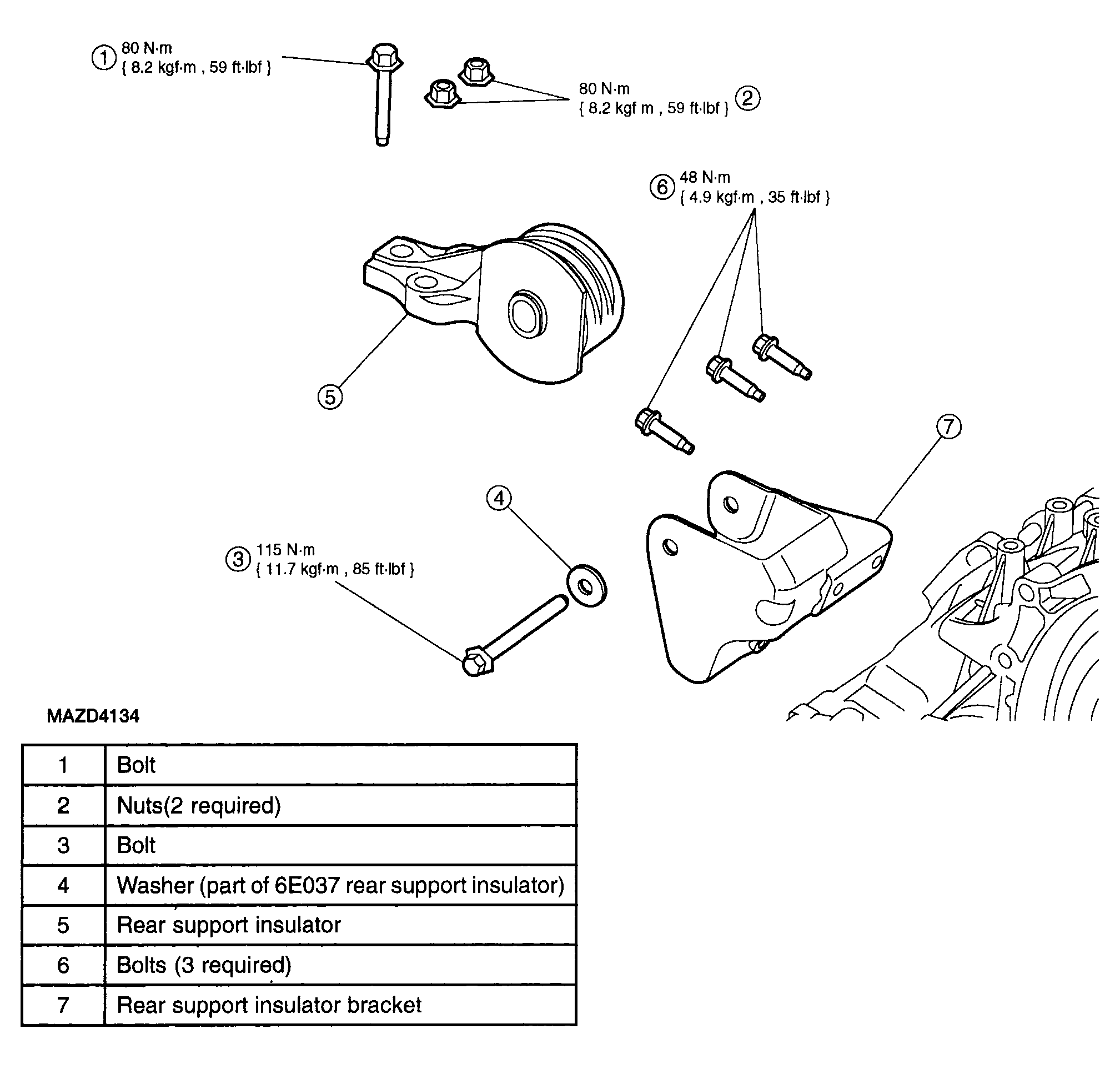

Fig 1: Transaxle Rear Support Insulator With Torque Specification
G04321005Courtesy of MAZDA MOTORS CORP.
