Steering Gear: Notes

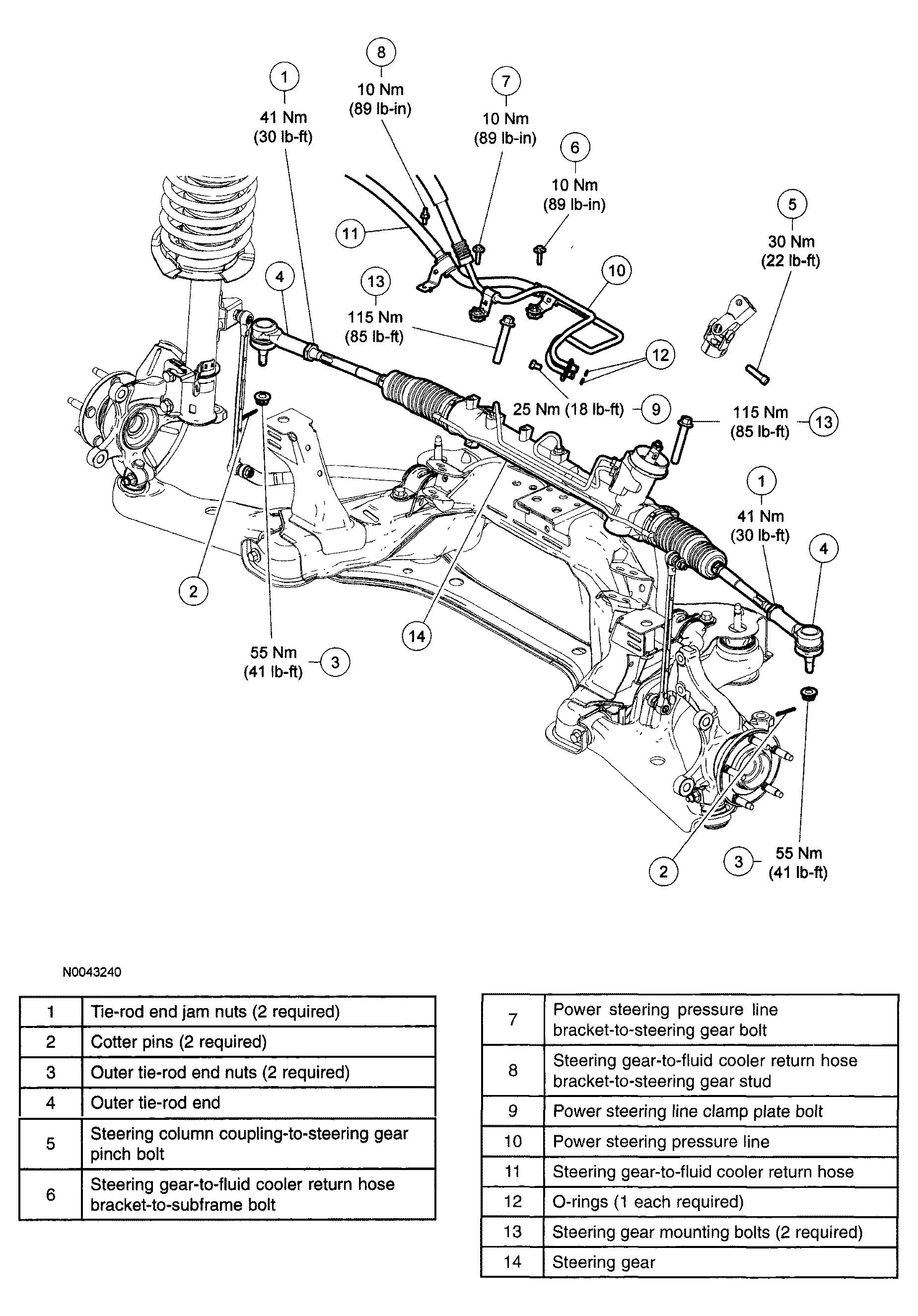

Fig 1: Exploded View Of Steering Gear With Torque Specifications
G04321867Courtesy of MAZDA MOTORS CORP.
