Wheel Alignment Angles: Toe

The vehicle toe setting:

• affects tire wear and directional stability.
• must be checked after adding aftermarket equipment to the vehicle that affects the suspension system.

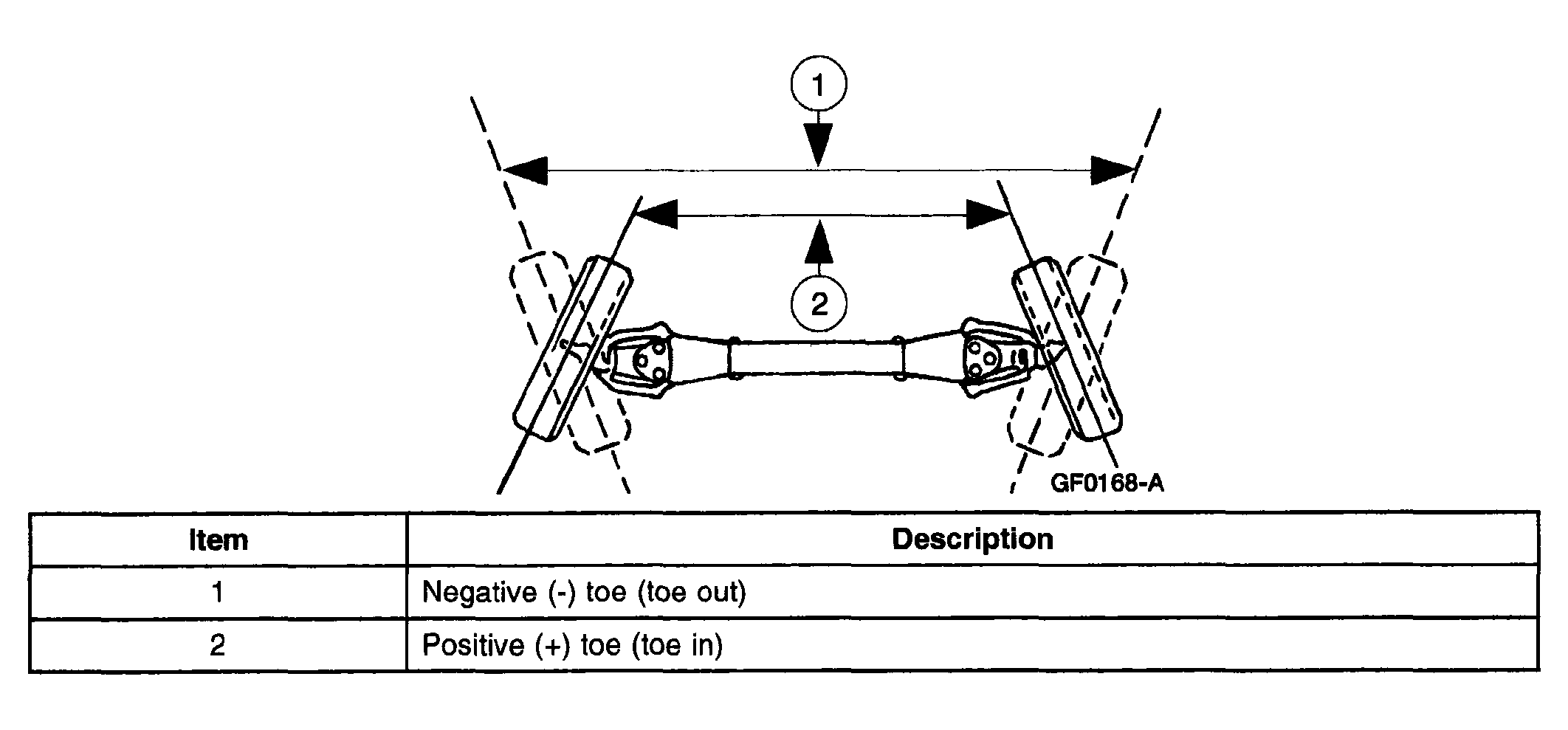

  Fig 1: Wheel Alignment Angles - Toe

  Courtesy of MAZDA MOTORS CORP.

When the wheels are turned in toward the front of the vehicle, the toe is positive (+) (toe in). When the wheels are turned out toward the front of the vehicle, the toe is negative (-) (toe out). This is measured in degrees, from side-to-side, and totalled.
