Selector Lever Cable Adjustment

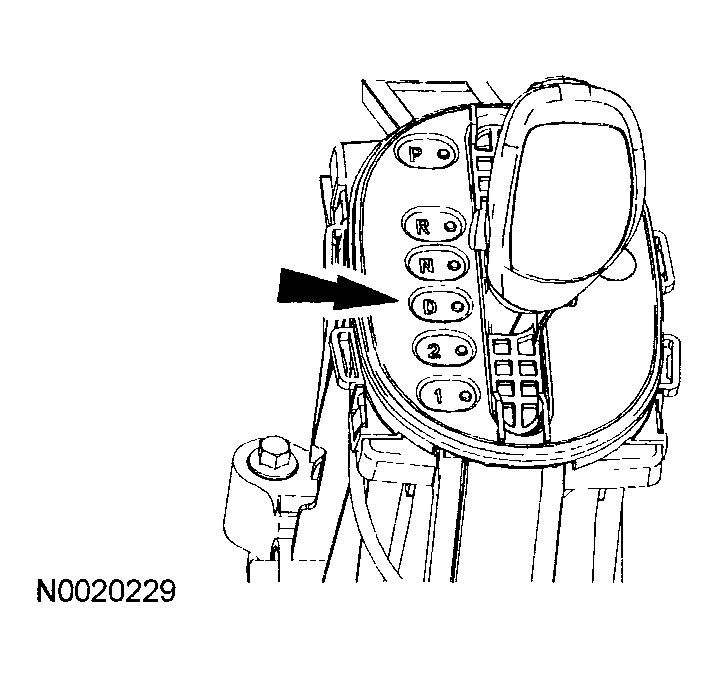

Place the floor shift selector lever in the DRIVE position.

Fig 1: Placing Floor Shift Selector Lever In Drive Position
Courtesy of MAZDA MOTORS CORP.

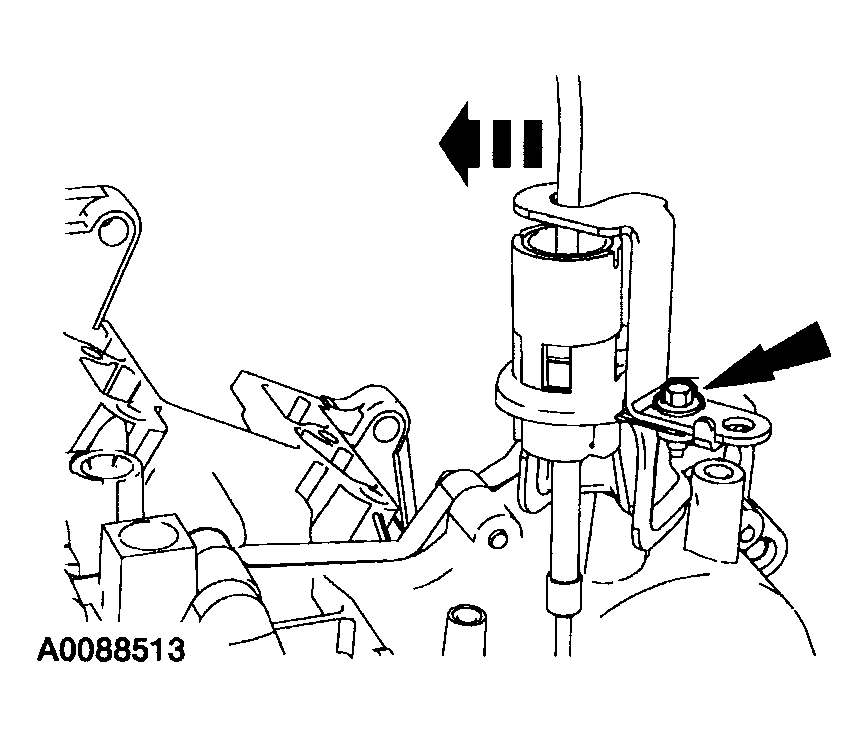

Loosen the fastener holding the Z-bracket to the transaxle shift bracket and rotate the Z-bracket counterclockwise to allow access to the shift cable/transaxle bracket interface.

Fig 2: Identifying Z-Bracket
Courtesy of MAZDA MOTORS CORP.
Loosen the gearshift cable adjuster to adjust the cable by turning it 1/4 turn counterclockwise.

Fig 3: Loosening The Gearshift Cable Adjuster
Courtesy of MAZDA MOTORS CORP.

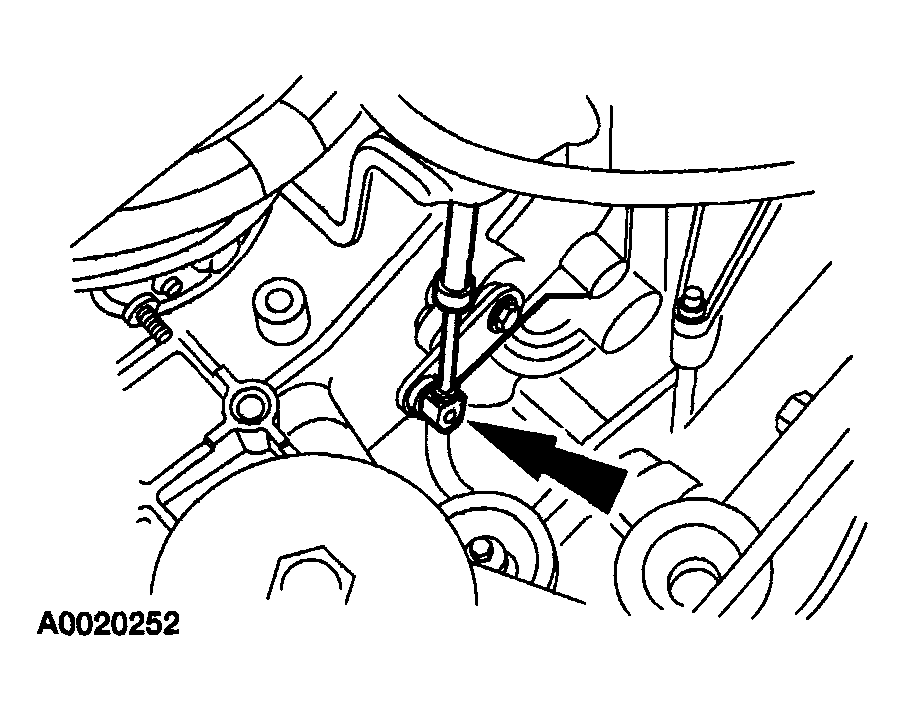

Place the transaxle manual control lever in the DRIVE position.

Fig 4: Placing Transaxle Manual Control Lever In The DRIVE Position
Courtesy of MAZDA MOTORS CORP.

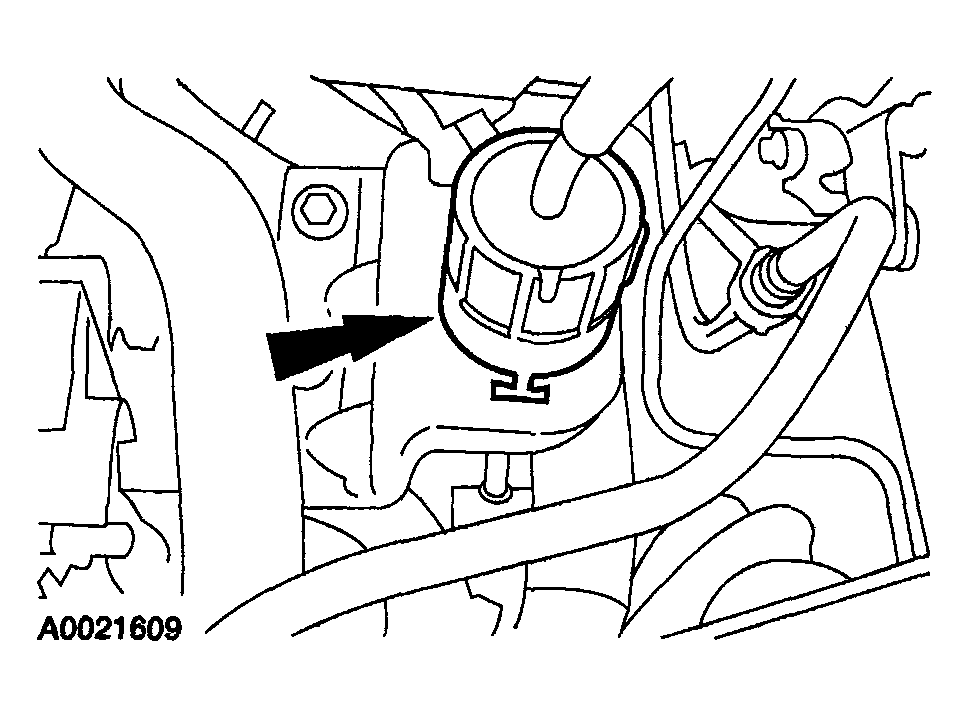

Tighten the cable adjustment ring by turning it clockwise 1/4 turn.

Fig 5: Tightening Cable Adjustment Ring
Courtesy of MAZDA MOTORS CORP.

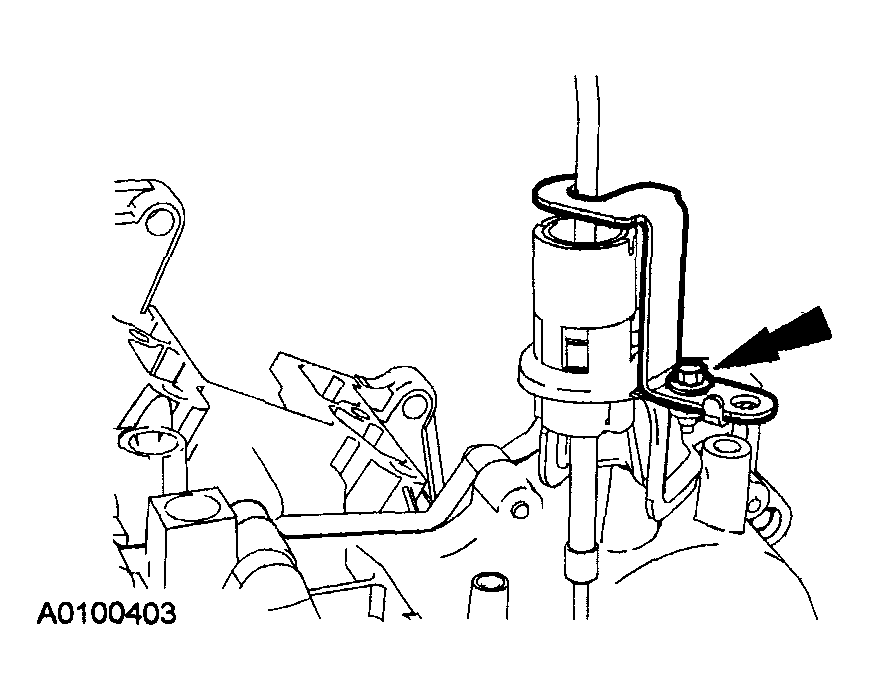

Rotate the Z-bracket clockwise over the shift cable end fitting and tighten the fastener.

Fig 6: Tightening Z-Bracket Fastener
Courtesy of MAZDA MOTORS CORP.

Tightening Torque:

11 Nm {1.1 kgf-m, 11 lb-in}
