Selector Lever Knob: Installation
- Lightly lubricate the shifter straw with multi-purpose grease, and install it into the shifter bore by pushing straight down.
- Feed the overdrive cancel switch electrical connector wire harness into the opening in the bezel and install the knob.
- Install the set screw.
Courtesy of MAZDA MOTORS CORP.

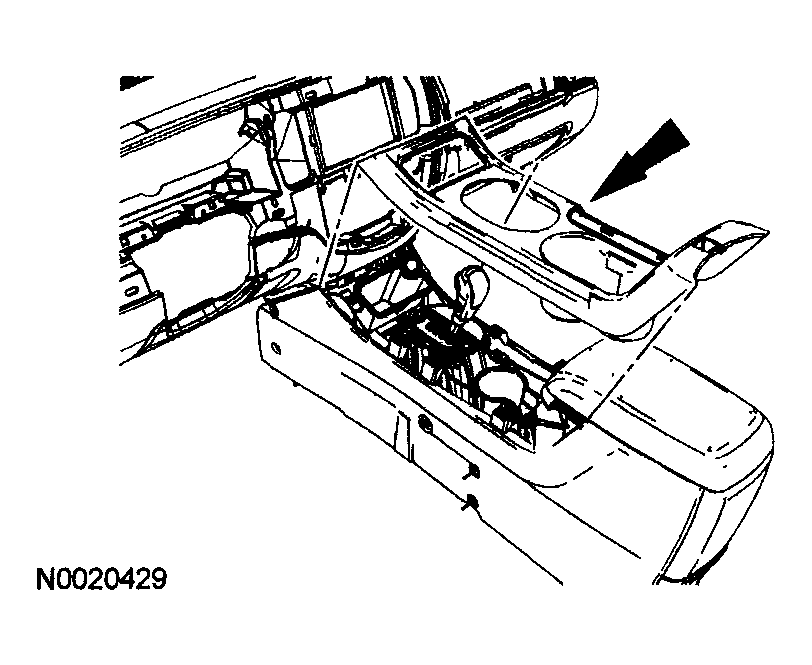

- Install the top finish panel.
Courtesy of MAZDA MOTORS CORP.

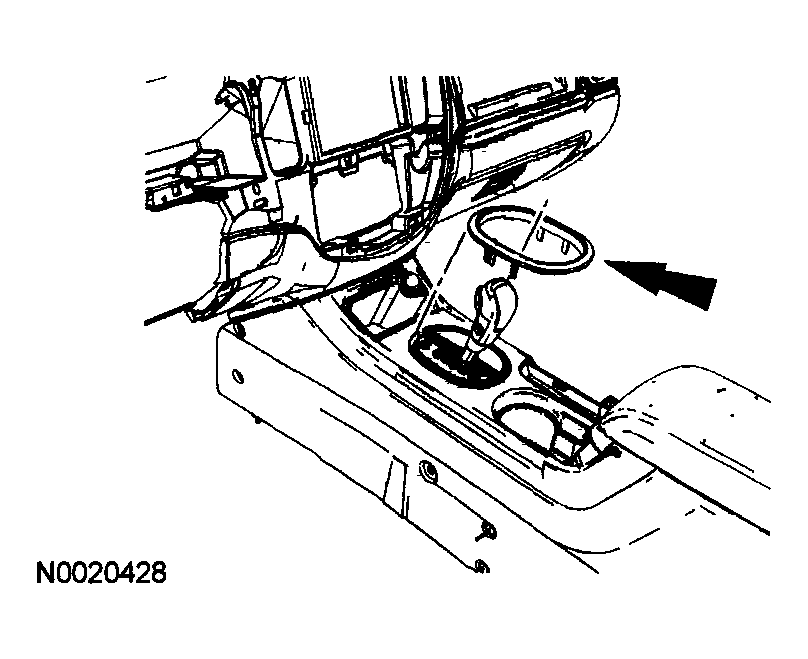

- Install the upper shift lever trim ring.
Courtesy of MAZDA MOTORS CORP.
- To install the upper shift lever trim ring, orient the thick tab on the driver side front of the shifter and press into place.
- Move the shifter through all gears from PARK to DRIVE several times, making sure that the shift knob set screw is not too tight.
