Selector Lever: Removal

Disconnect the battery. BATTERY DISCONNECT .
Place the floor shift selector lever in the (D) position.

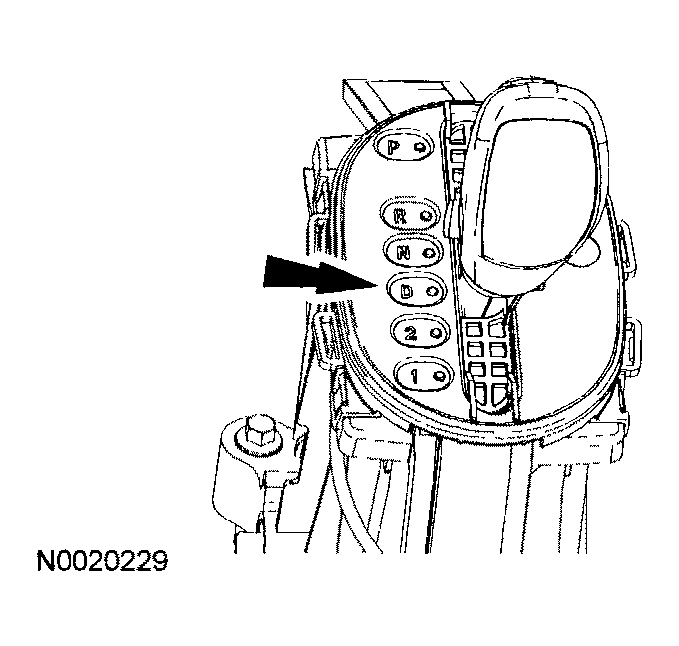

Fig 1: Placing Floor Shift Selector Lever In (D) Position
Courtesy of MAZDA MOTORS CORP.
Gently pry up to remove the upper shift lever trim ring.

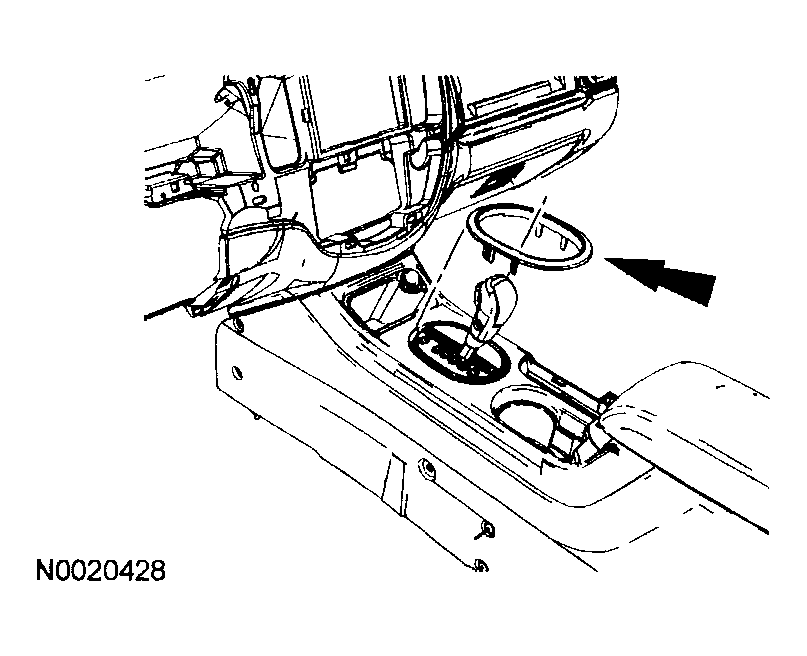

Fig 2: Removing Upper Shift Lever Trim Ring
Courtesy of MAZDA MOTORS CORP.
NOTE:
- It may be necessary to apply the parking brake in order to remove the top finish panel.
NOTE:
- If necessary, disconnect the electrical connector from the finish panel.
Remove the top finish panel.

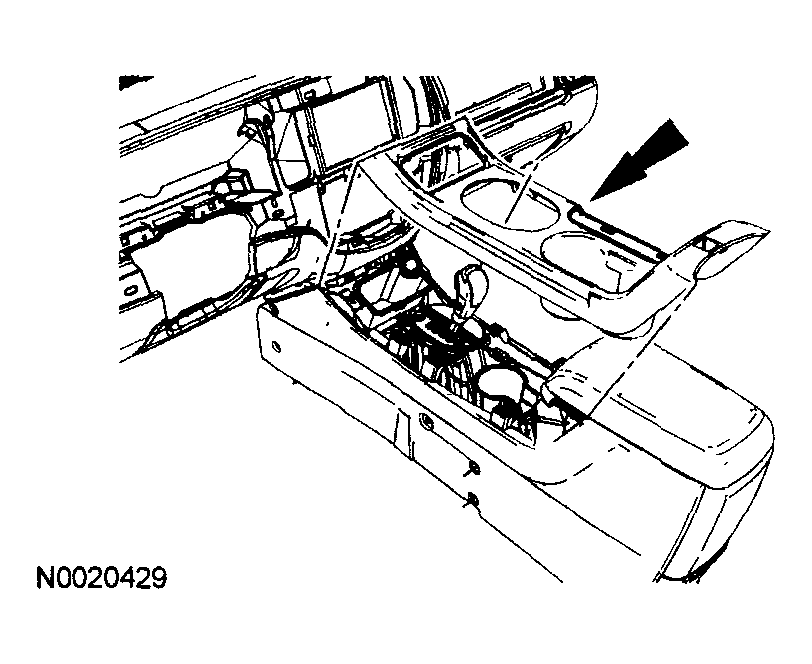

Fig 3: Removing Top Finish Panel
Courtesy of MAZDA MOTORS CORP.
Remove the shift cable from the gearshift assembly.

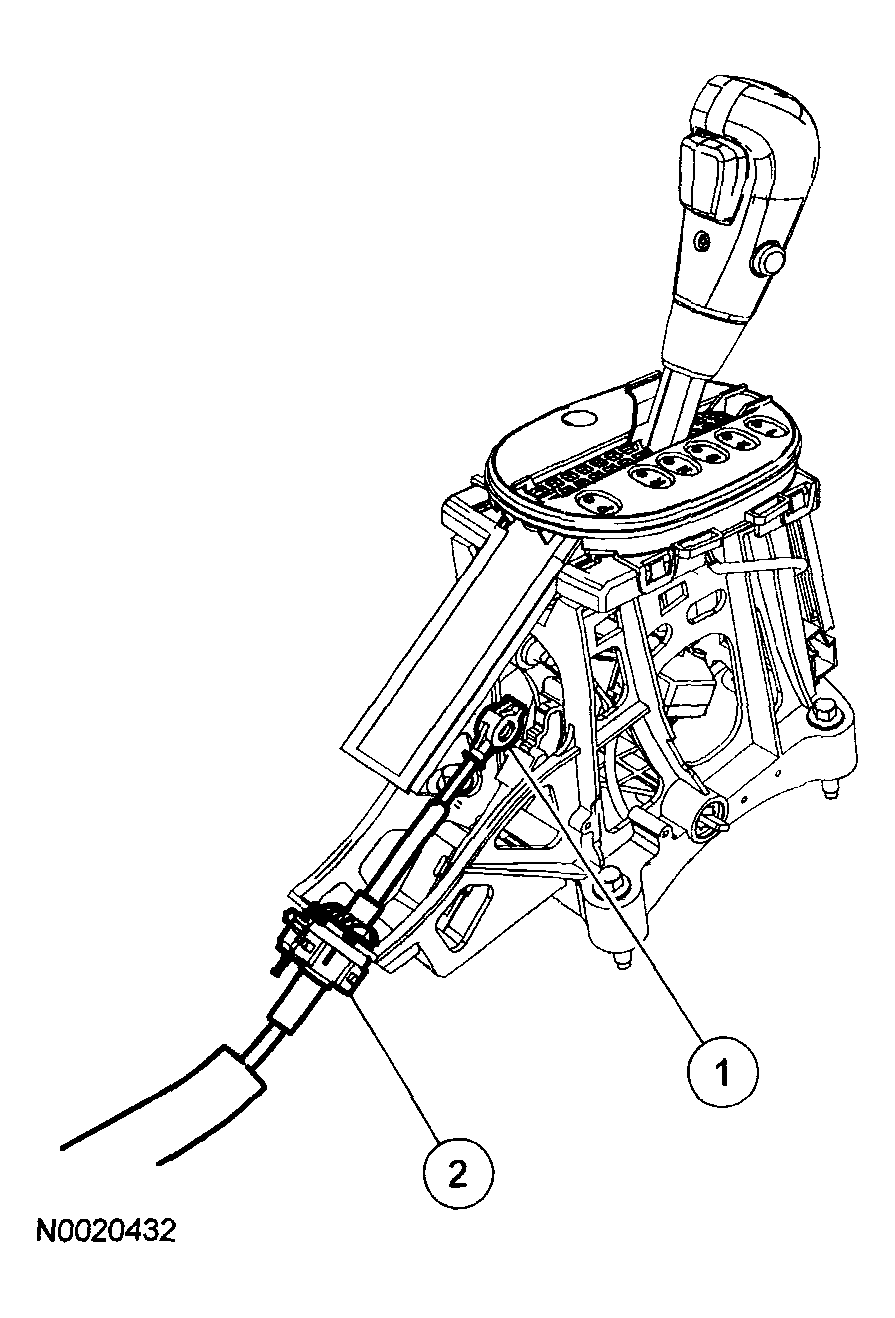

Fig 4: Removing Shift Cable From Gearshift Assembly
Courtesy of MAZDA MOTORS CORP.
- Disconnect the shift cable end from the gearshift lever.
- Remove the shift cable from the bracket.
Remove the shifter.

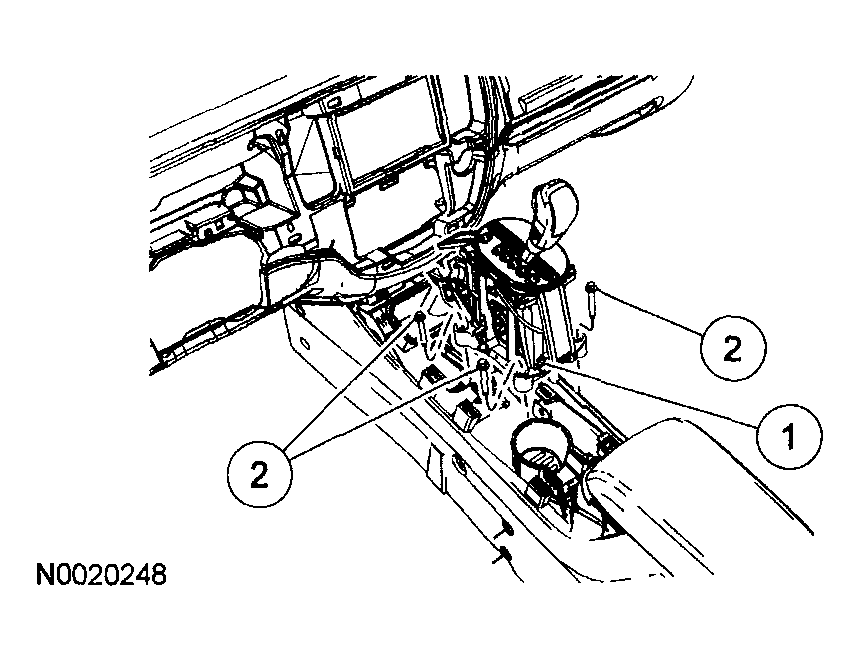

Fig 5: Removing Shifter
Courtesy of MAZDA MOTORS CORP.
- Disconnect the electrical connector.
- Remove the 4 bolts and remove the shifter.
