Disassembled Views

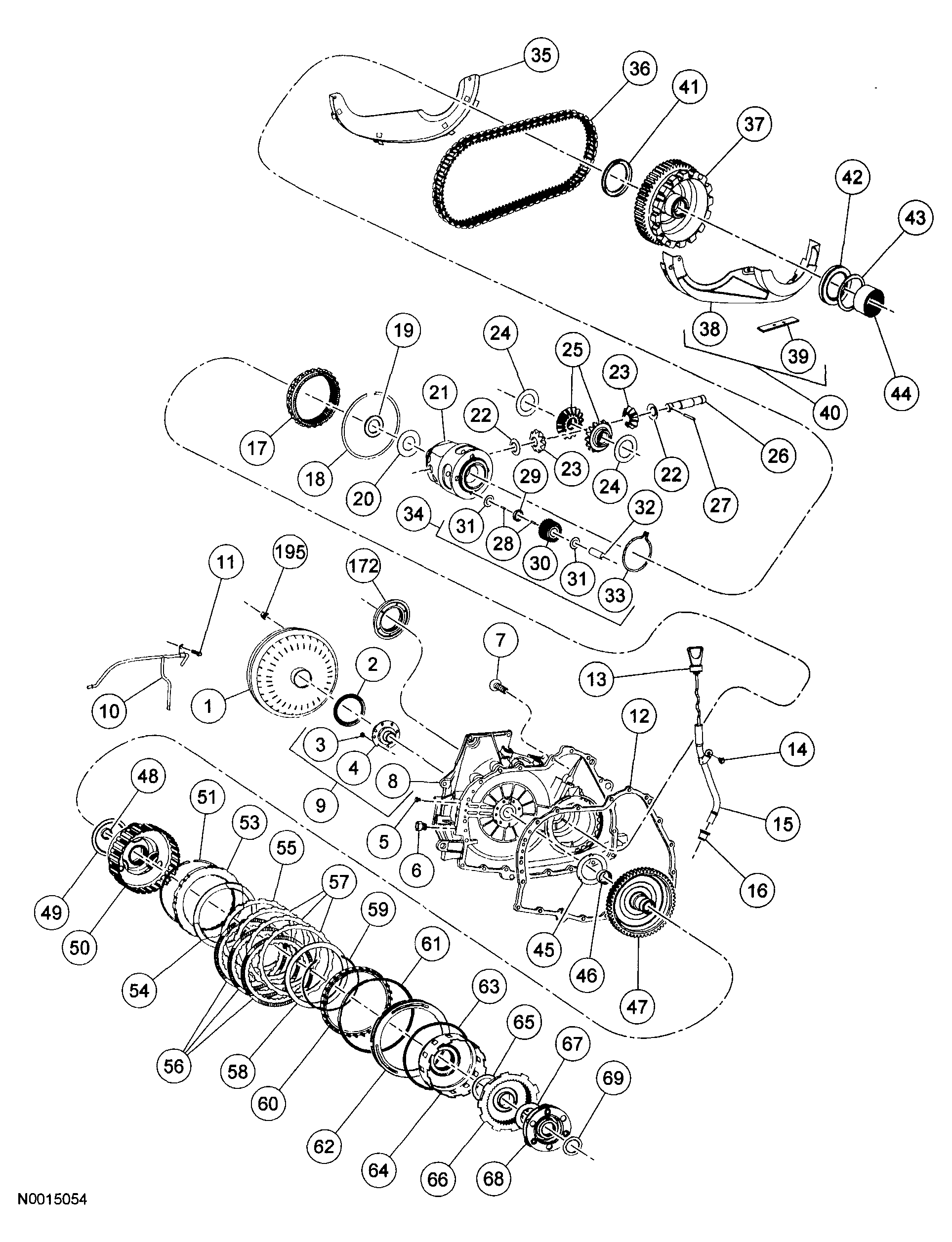

Fig 1: Automatic Transaxle - Disassembled Views (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

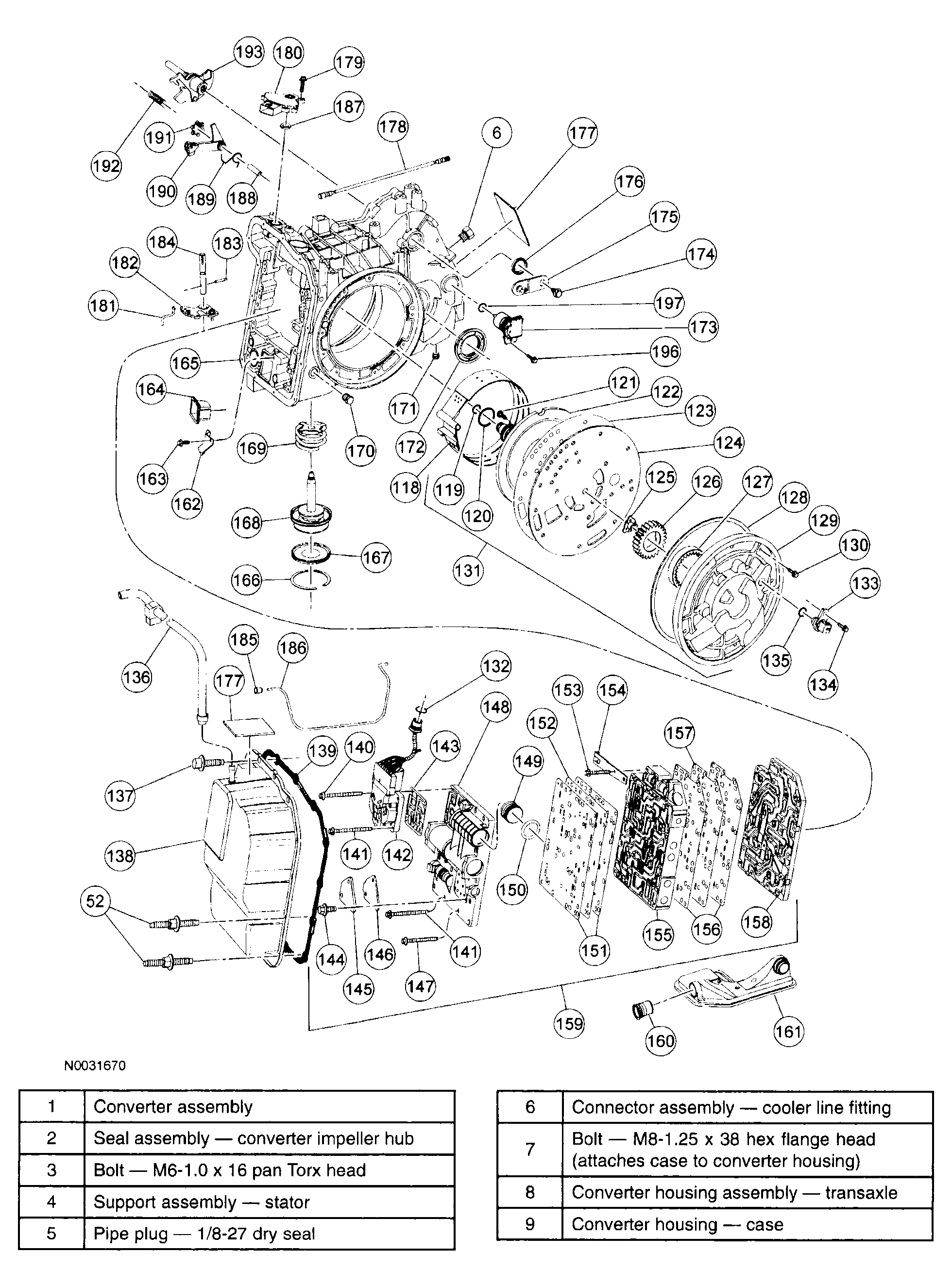

Fig 2: Automatic Transaxle - Disassembled Views (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

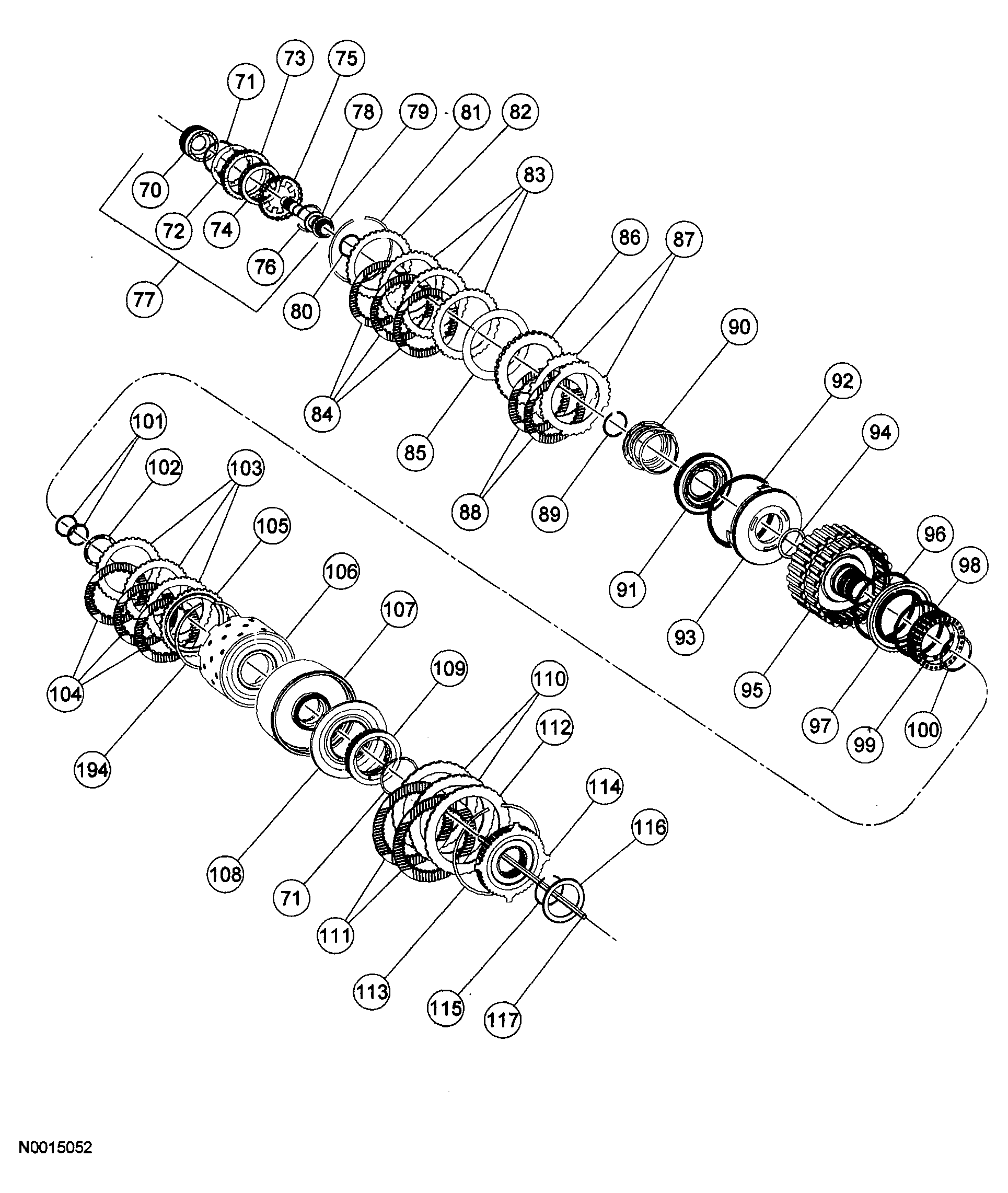

Fig 3: Automatic Transaxle - Disassembled Views (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

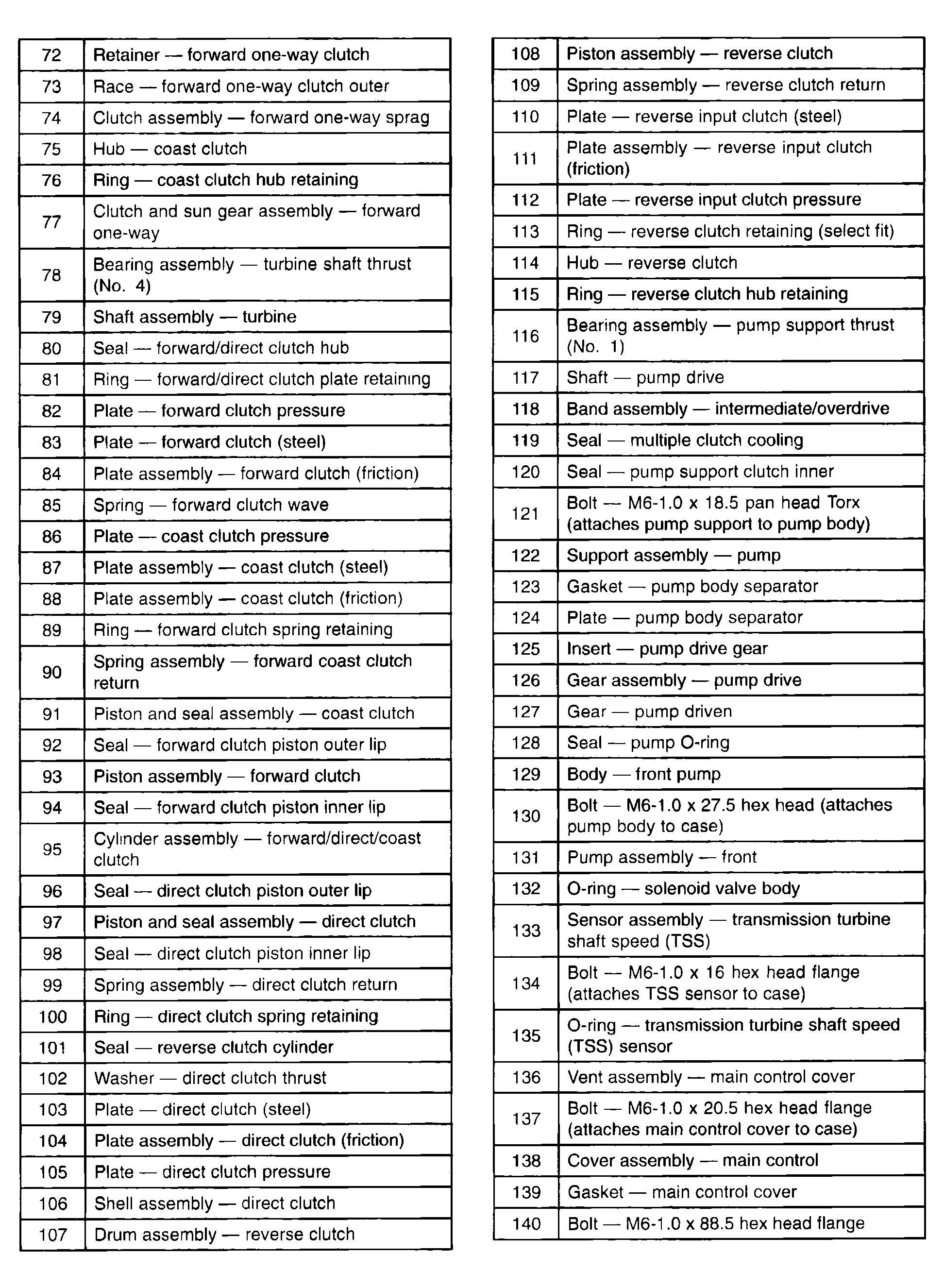

Fig 4: Automatic Transaxle Reference Table (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

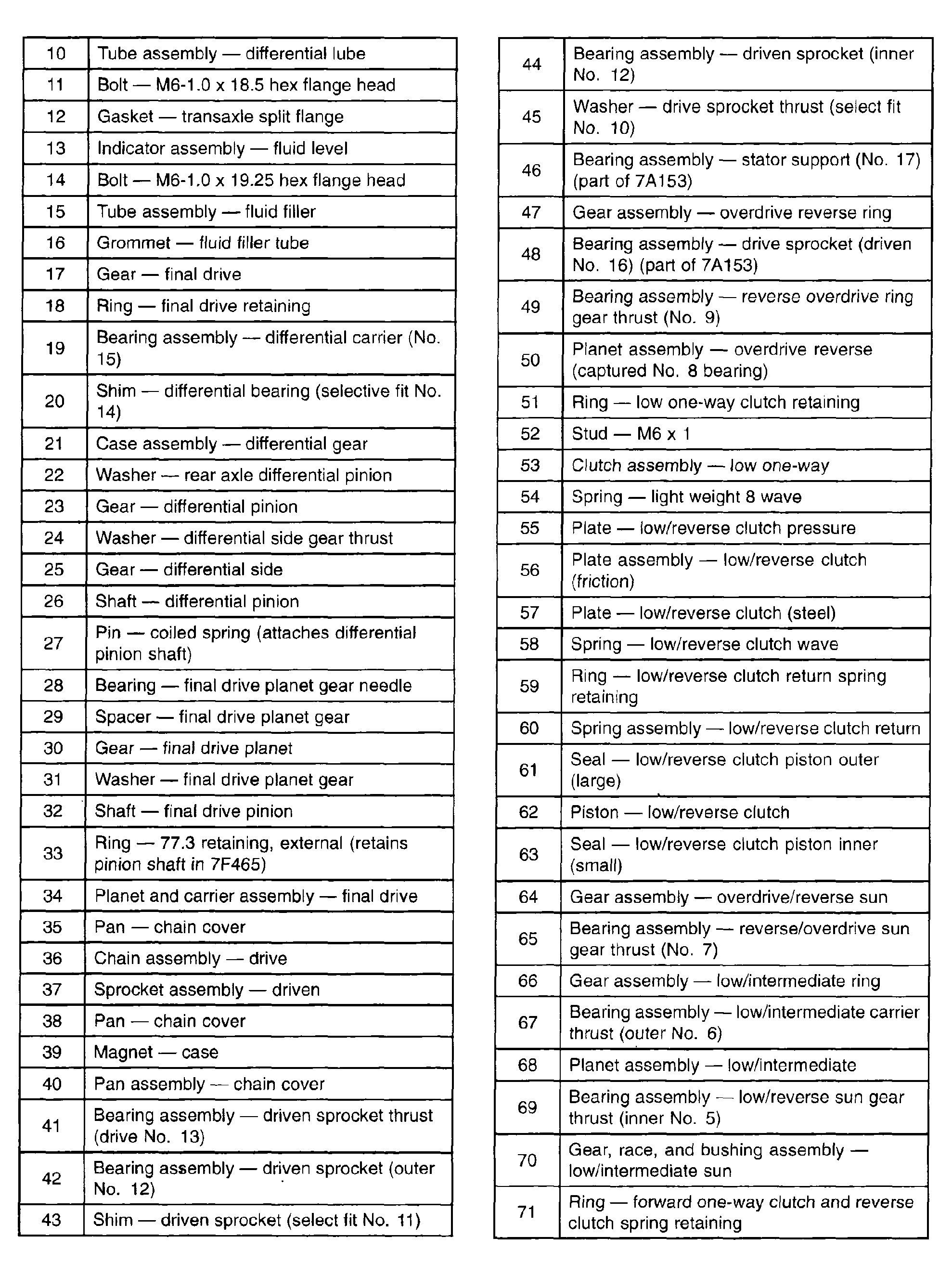

Fig 5: Automatic Transaxle Reference Table (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

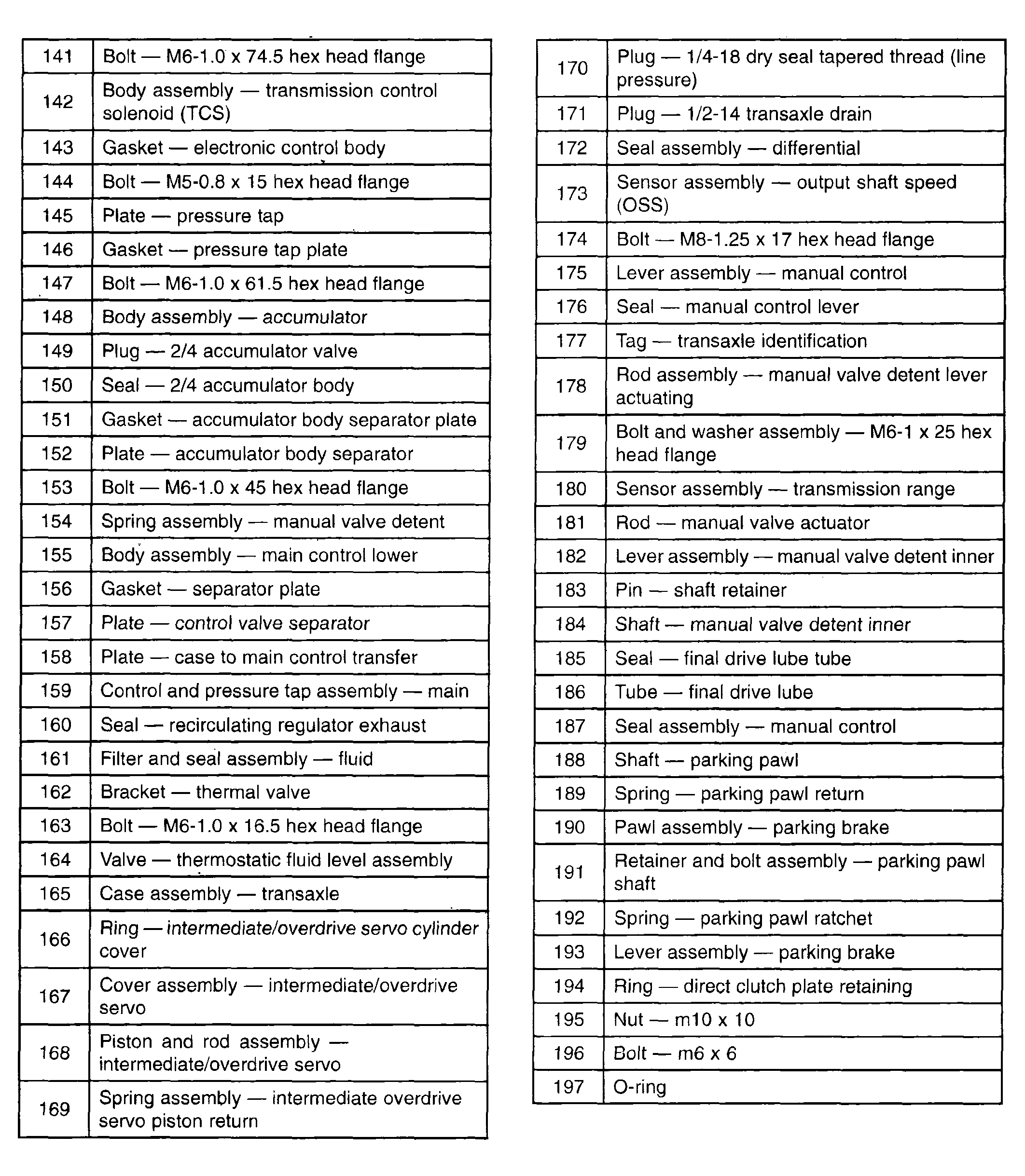

Fig 6: Automatic Transaxle Reference Table (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
