Starter Removal/Installation: Notes
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
- Remove the battery, battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
- Remove the air cleaner, charge air cooler cover, and air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the under cover.

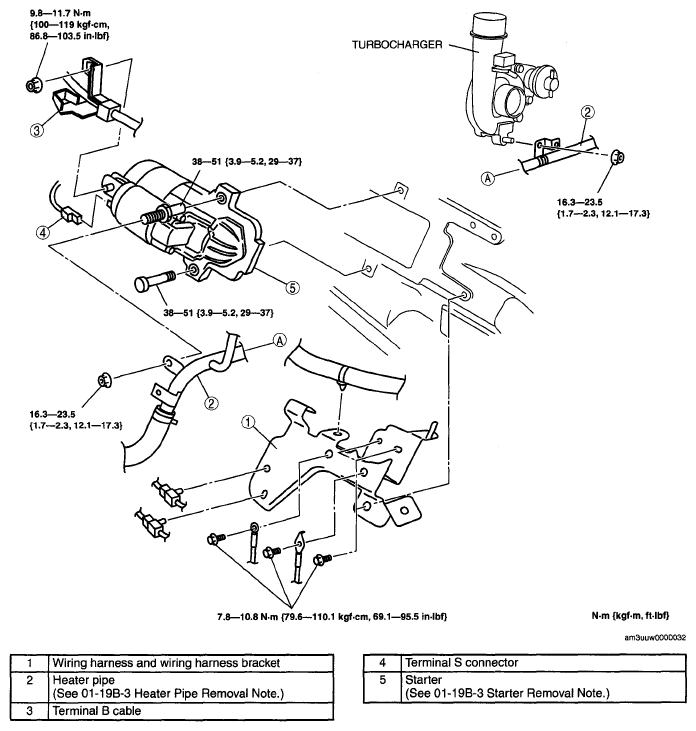

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
