Ignition Coil Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
  2. Disconnect the negative battery cable.
  3. Remove the charge air cooler. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

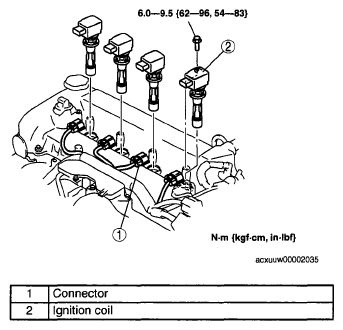

    Fig 1: Ignition Coil -- With Torque Specification
    G04955130Courtesy of MAZDA MOTORS CORP.
