3 Mazdaspeed, 2.3 L
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Symptom Troubleshooting (L3 With TC)
›
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

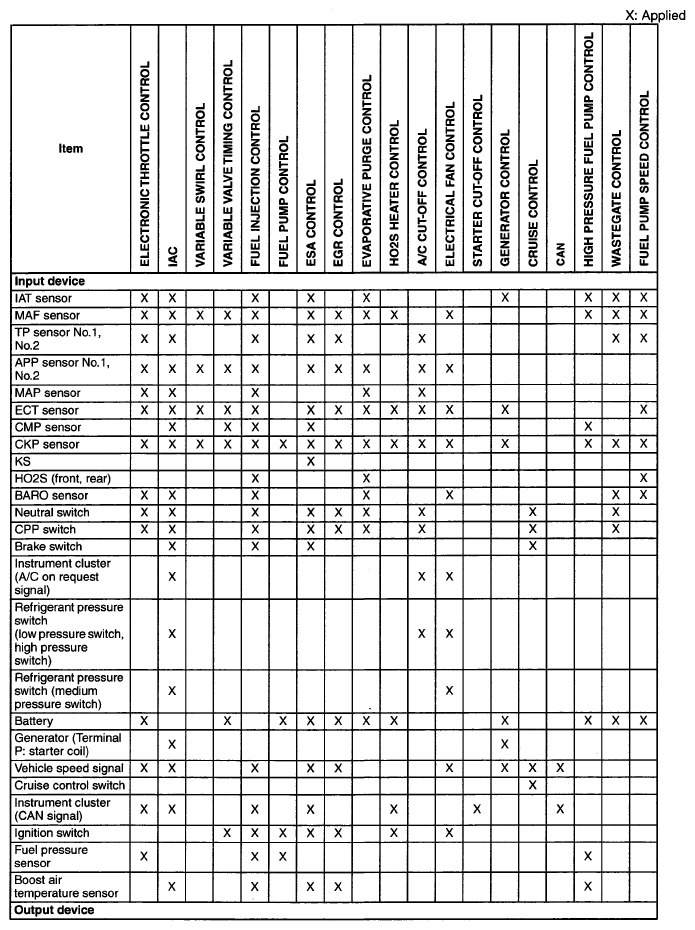

Fig 1: Control System Device And Control Relationship Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

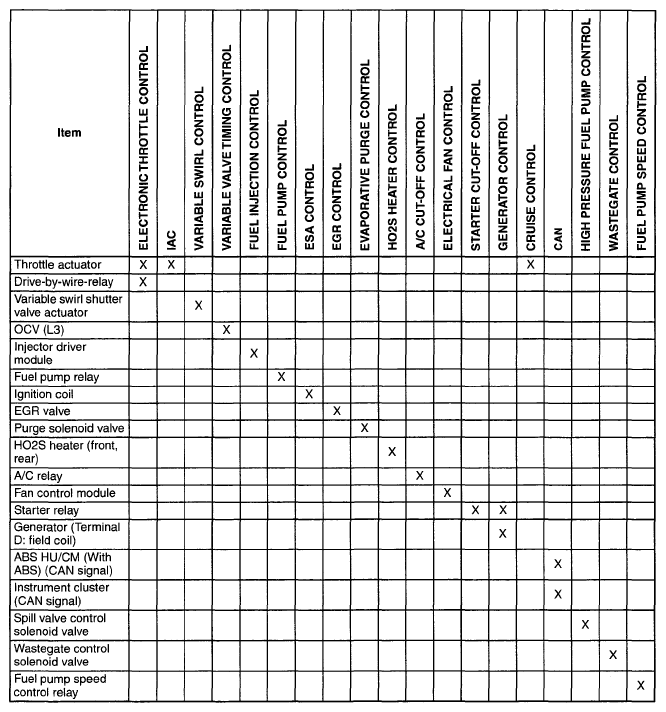

Fig 2: Control System Device And Control Relationship Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
