Symptom Troubleshooting (L3 With TC)
›
Quick Diagnostic Chart
Quick Diagnostic Chart

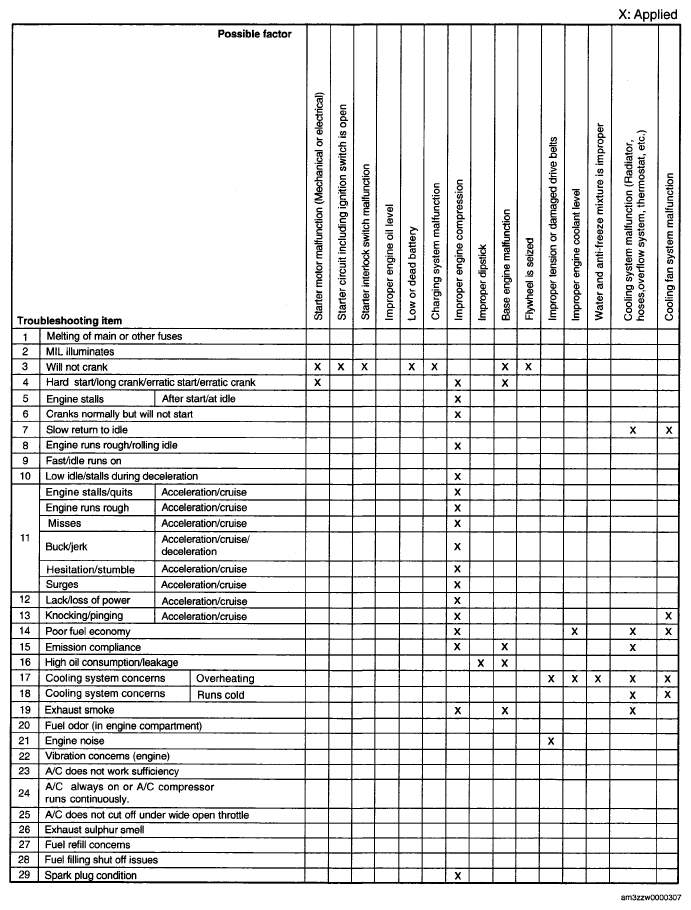

Fig 1: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

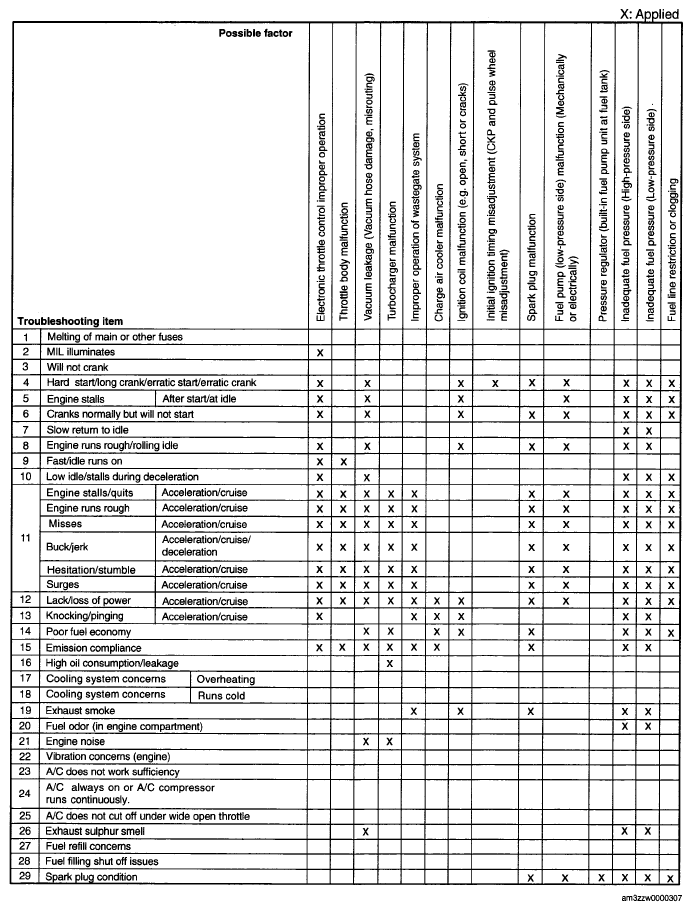

Fig 2: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

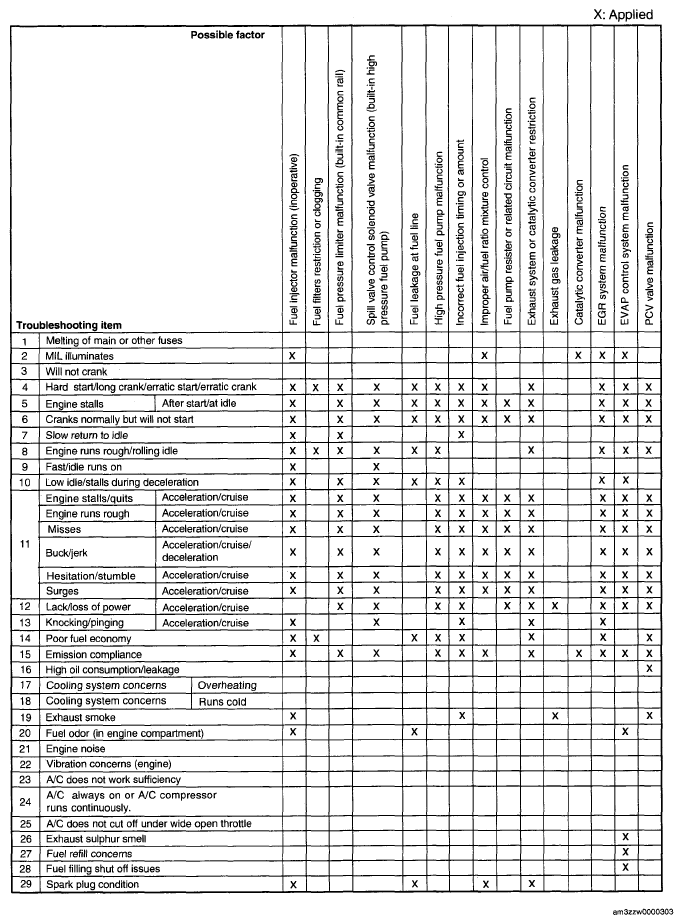

Fig 3: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.

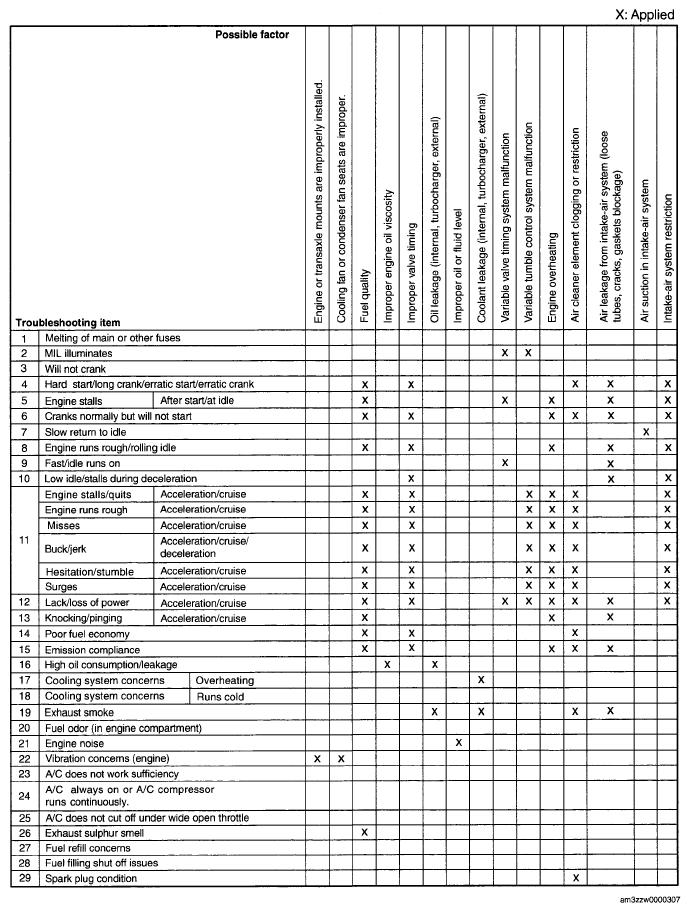

Fig 4: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
Fig 5: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
Fig 6: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
Fig 7: Quick Diagnostic Chart [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
