3 i, 2.0 F, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (LF, L3)
›
Control System Diagram
›
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model

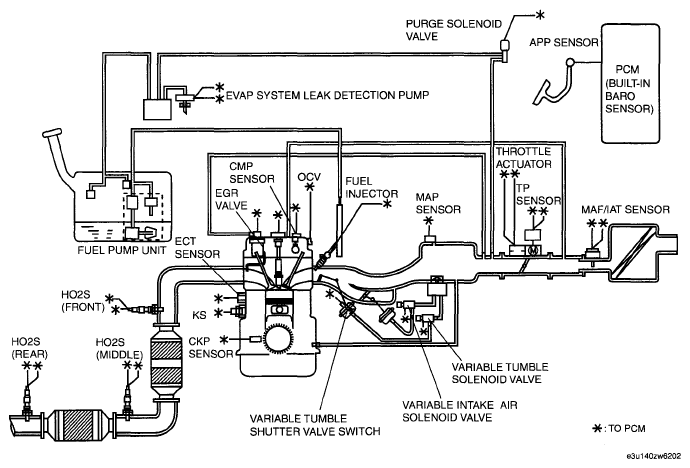

Fig 1: Control System Diagram - California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.
