Control System Location Index
Control System Location Index

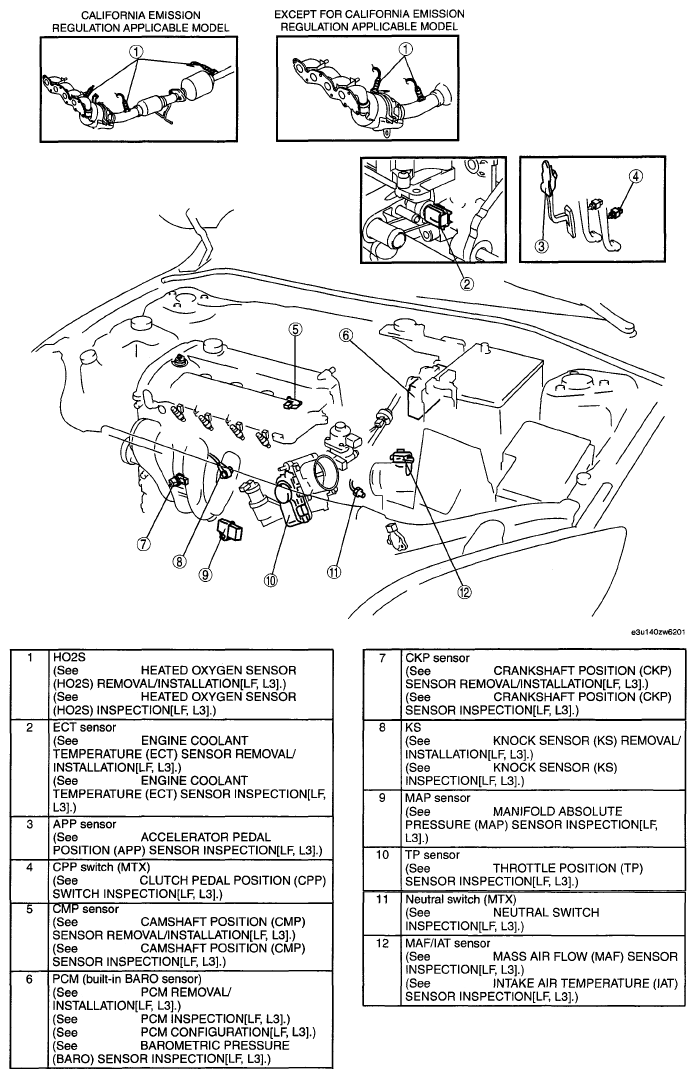

Fig 1: Identifying Control System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
