California Emission Regulation Applicable Model: Notes
- Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See
BEFORE SERVICE PRECAUTION ).
- Disconnect the negative battery cable.
- Remove the fuel tank. (See
FUEL TANK REMOVAL/INSTALLATION ).

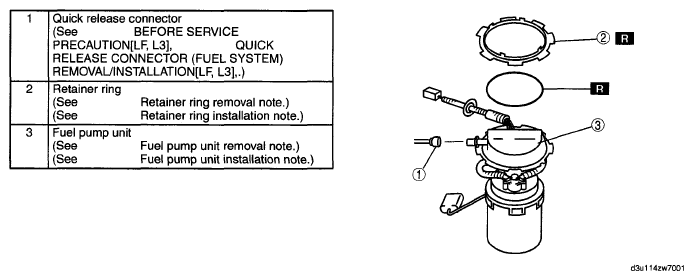

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See
AFTER SERVICE PRECAUTION ).
Courtesy of MAZDA MOTORS CORP.
