DTC B1311: Notes

DTC B1311 DETECTION CONDITION POSSIBLE CAUSE

DTC B1311	Unlock switch circuit open
DETECTION CONDITION	Open circuit in wiring harness between PJB and driver-side door lock-link switch (unlock signal)

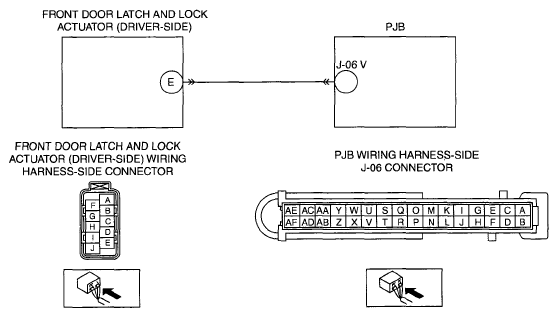

POSSIBLE CAUSE	Open circuit in wiring harness between PJB terminal J-06 V and front door latch and lock actuator (driver-side) terminal E Front door latch and lock actuator malfunction PJB malfunction
Courtesy of MAZDA MOTORS CORP.
