DTC B2898: Notes
DTC B2898 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2898 |
Right turn signal indicator output failure |
| DETECTION CONDITION |
- Open circuit or short to power supply or GND in wiring harness between PJB and turn light
- Turn light bulb malfunction
|
| POSSIBLE CAUSE |

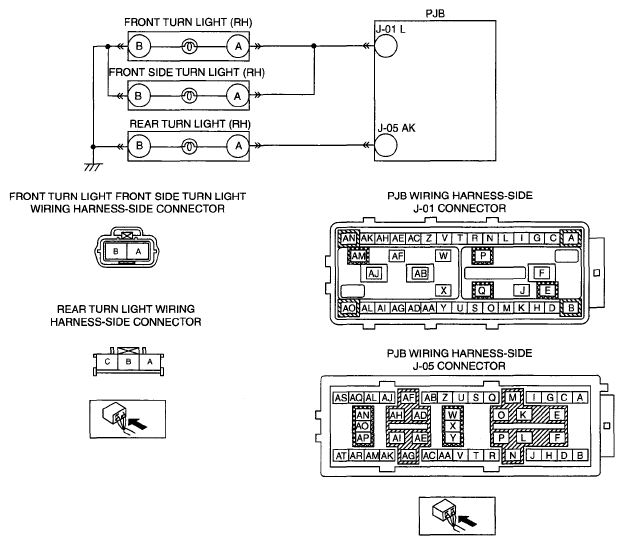

- Open circuit in wiring harness between PJB terminal J-01 L and front turn light (RH) terminal A or front side turn light (RH) terminal A
- Short to power supply in wiring harness between PJB terminal J-01 L and front turn light (RH) terminal A or front side turn light (RH) terminal A
- Short to GND in wiring harness between PJB terminal J-01 L and front turn light (RH) terminal A or front side turn light (RH) terminal A
- Open circuit in wiring harness between PJB terminal J-05 AK and rear turn light (RH) terminal A
- Short to power supply in wiring harness between PJB terminal J-05 AK and rear turn light (RH) terminal A
- Short to GND in wiring harness between PJB terminal J-05 AK and rear turn light (RH) terminal A
- Turn lights malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
