On-Board Diagnostic (Engine Control System LF, L3) (1 Of 5)
›
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart
California Emission Regulation Applicable Model

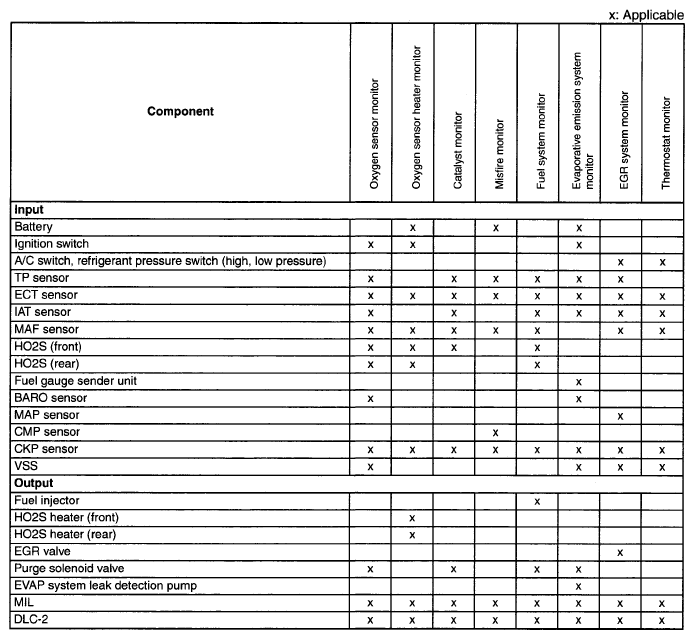

Fig 1: Monitoring System And Control System Device Relationship Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

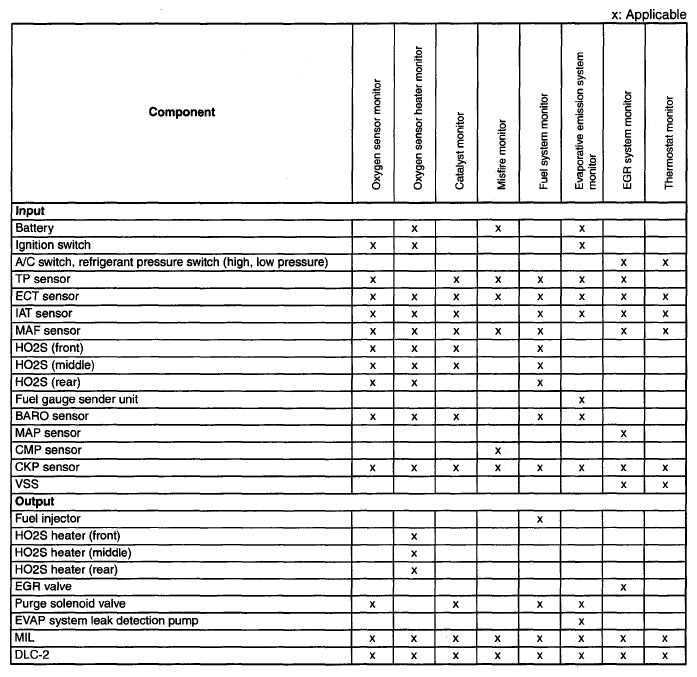

Fig 2: Monitoring System And Control System Device Relationship Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
