Engine Control System (LF, L3)
›
Control System Wiring Diagram
›
Except for California Emission Regulation Applicable Model with LF ATX
Except for California Emission Regulation Applicable Model with LF ATX

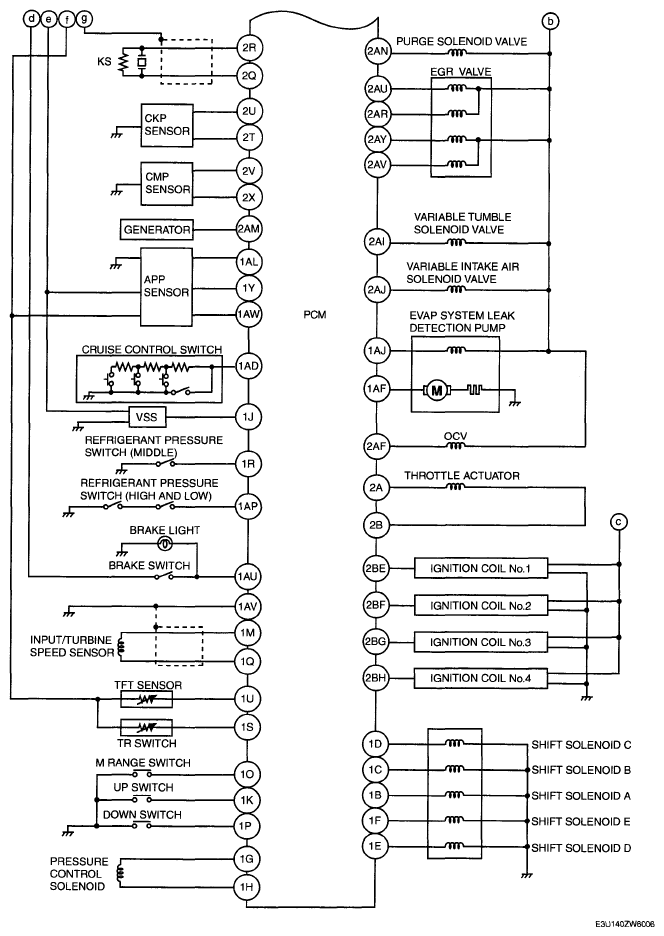

Fig 1: Control System Wiring Diagram - Except For California Emission Regulation Applicable Model With LF ATX (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

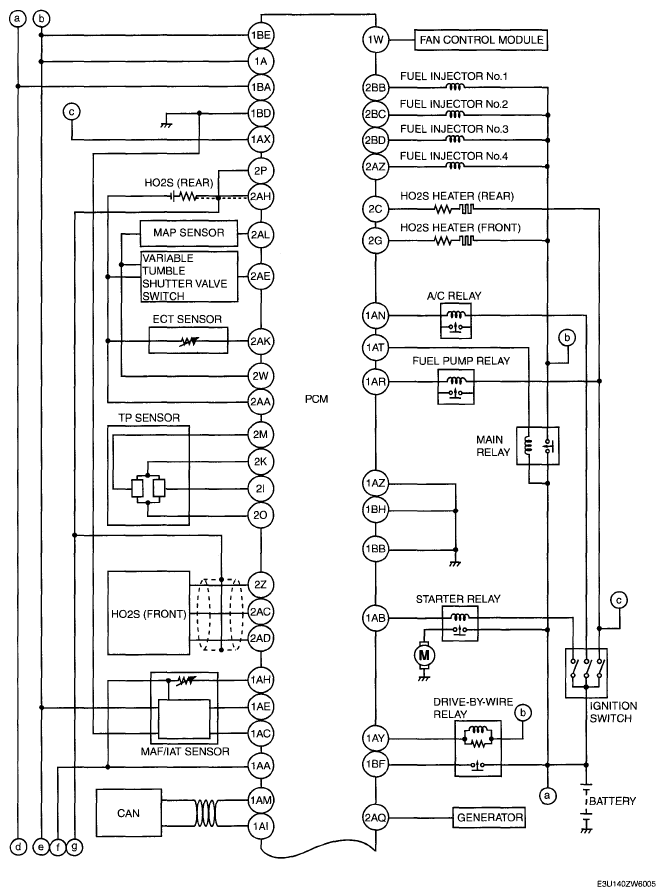

Fig 2: Control System Wiring Diagram - Except For California Emission Regulation Applicable Model With LF ATX (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
