DTC P2127: Notes
DTC P2127 (LF, L3) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2127 |
Accelerator pedal position (APP) sensor No. 2 circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from APP sensor No. 2 when the engine is running. If the input voltage is below 6 V /5.28 V ,
for 1s
, the PCM determines that the APP sensor No. 2 circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- APP sensor No. 2 malfunction
- Connector or terminal malfunction

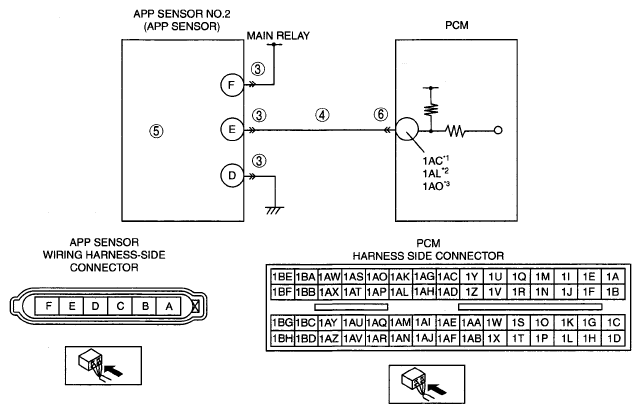

- Short to ground in wiring harness between APP sensor terminal E and PCM terminal 1AC, 1AL, 1AO
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
