DTC P2503: Notes
DTC P2503 (LF, L3) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2503 |
Charging system voltage low |
| DETECTION CONDITION |
- The PCM needs more than 20 A
from generator, and judges generator output voltage to be below 8.5 V
during engine running.
Diagnostic support note
- This is a continuous monitor (Other).
- The MIL does not illuminate.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is not available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Generator malfunction
- PCM and/or generator are poorly connected

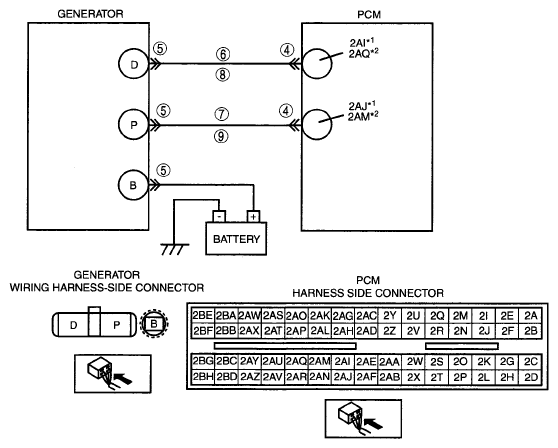

- Open and/or short to ground in wiring from between generator terminal P and PCM terminal 2AJ, 2AM, 2AJ*3
- Open and/or short to ground in wiring from between generator terminal D and PCM terminal 2AI, 2AQ, 2AI*3
- Drive chain misadjustment
|
