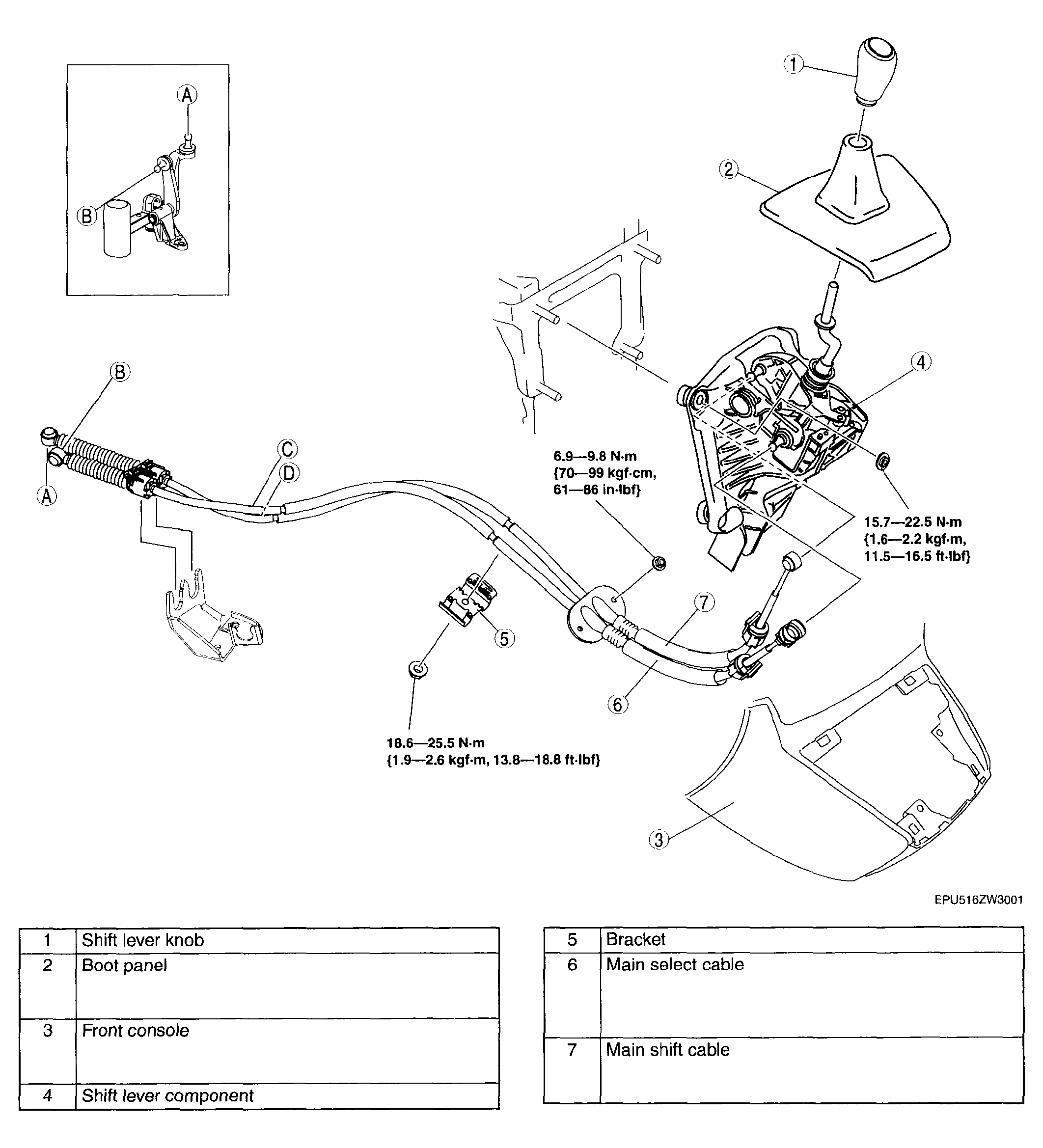

Manual Transaxle Shift Mechanism Removal/Installation: Removal/Installation: Notes
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3] ).
- Remove the heat insulator (Front).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that the shift lever can be shifted smoothly into each position.
