FixVault
Home
›
Mazda
›
2007
›
5 Touring, 2.3 3, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Ignition Switch/Steering Lock
›
Power Systems
›
Relay Location
Relay Location

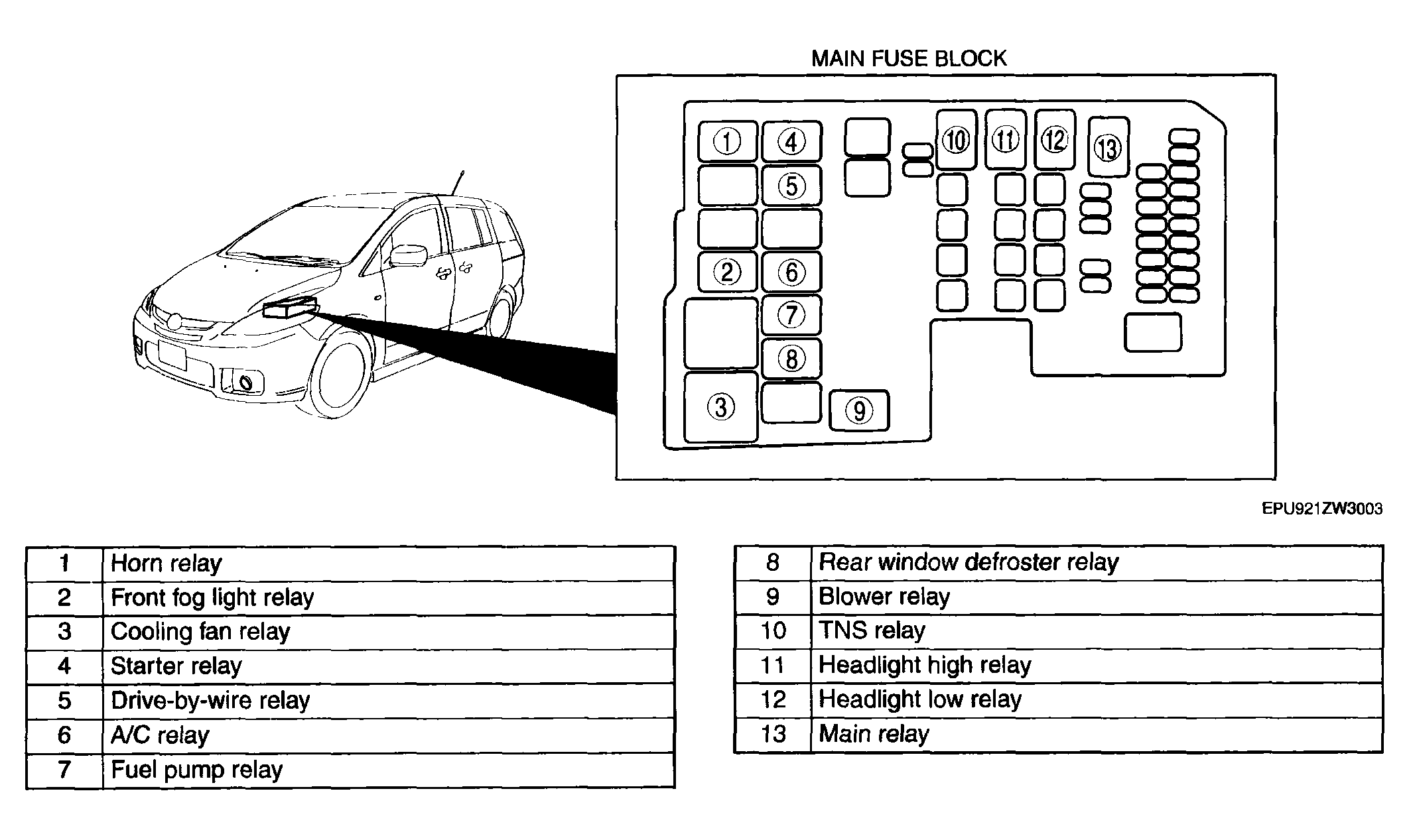

Fig 1: Identifying Relay Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
