Power Outer Mirror Switch Inspection

Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
- If not as indicated in the table, replace the power outer mirror switch.

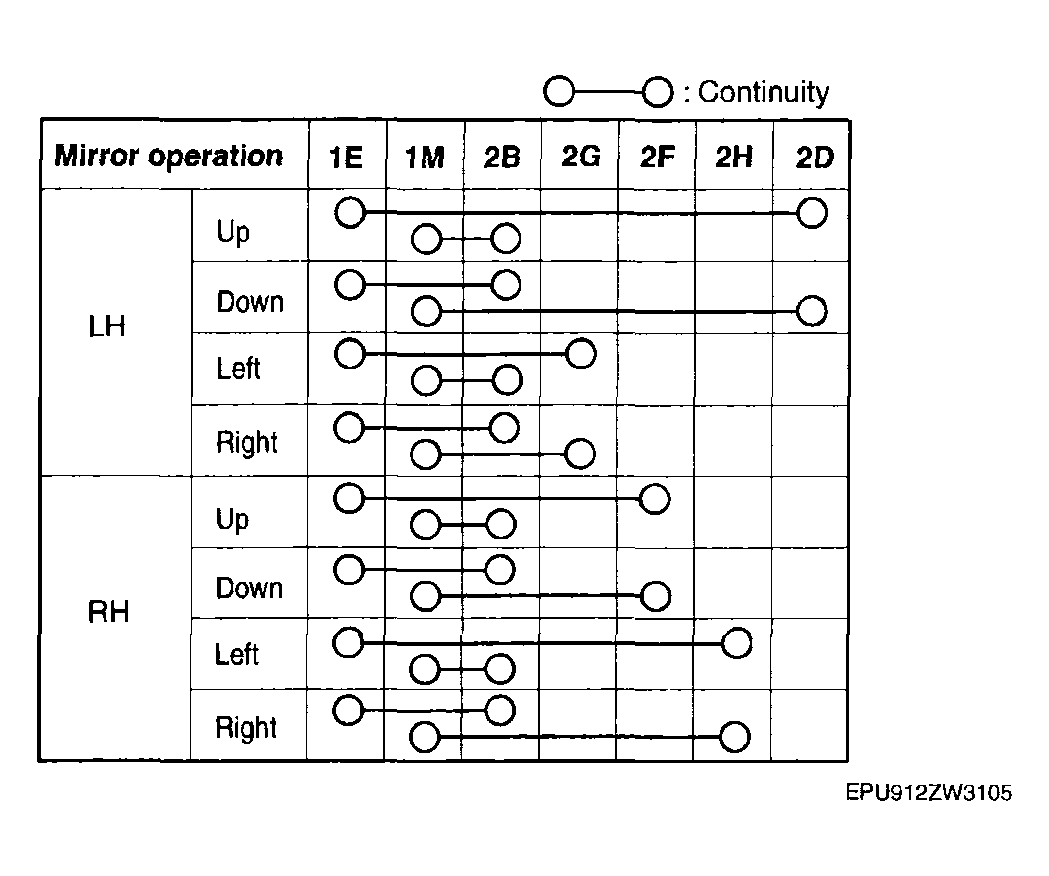

  Fig 1: Power Outer Mirror Switch Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Inspecting Continuity Between Power Outer Mirror Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
