Ignition Coil Removal/Installation

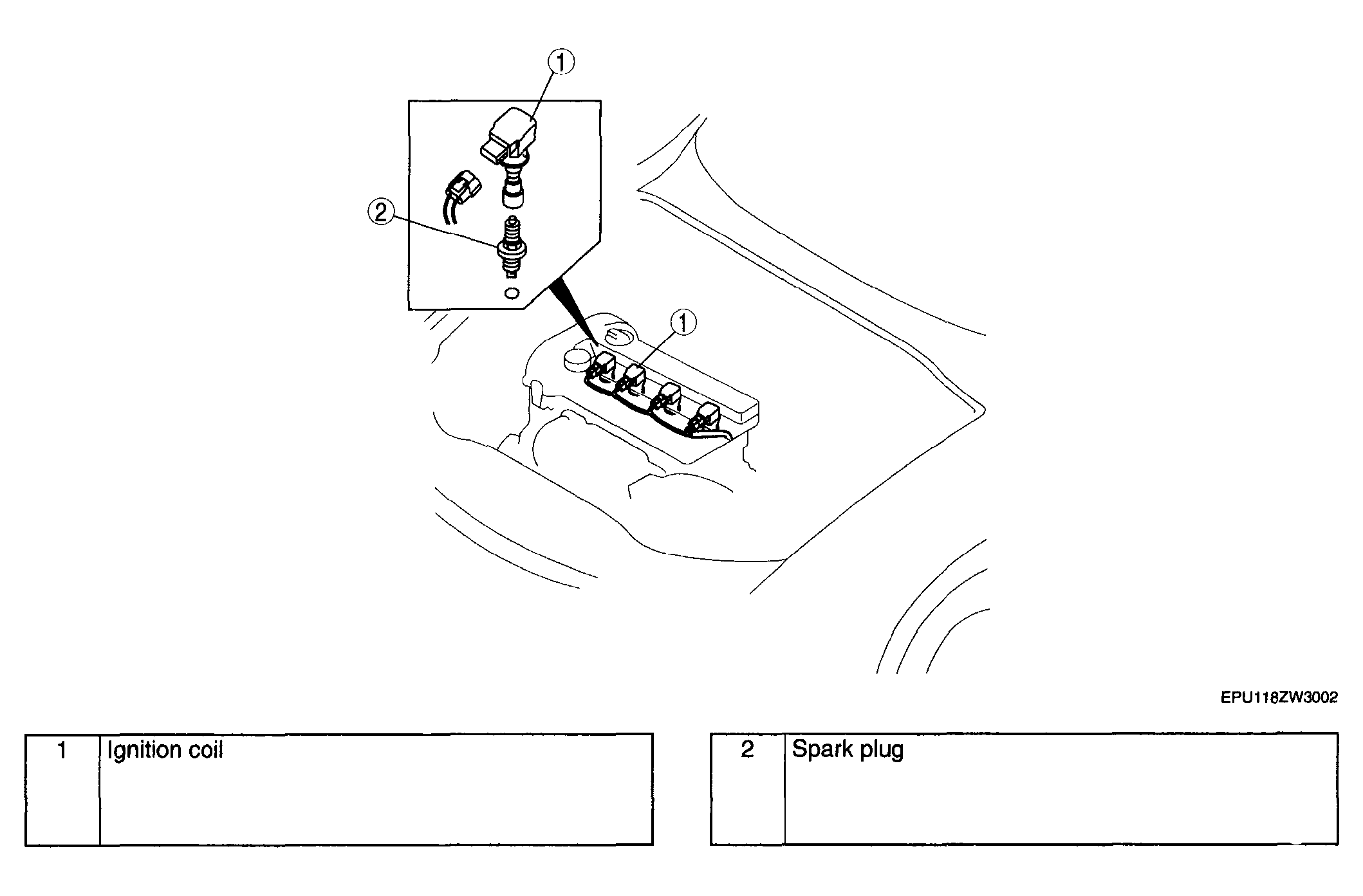

Fig 1: Identifying Ignition Coil Components Location

G04316021

Courtesy of MAZDA MOTORS CORP.

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
Disconnect the negative battery cable.
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.
Install in the reverse order of removal.
IGNITION COIL REMOVING ORDER

1 Connector

2 Ignition coil

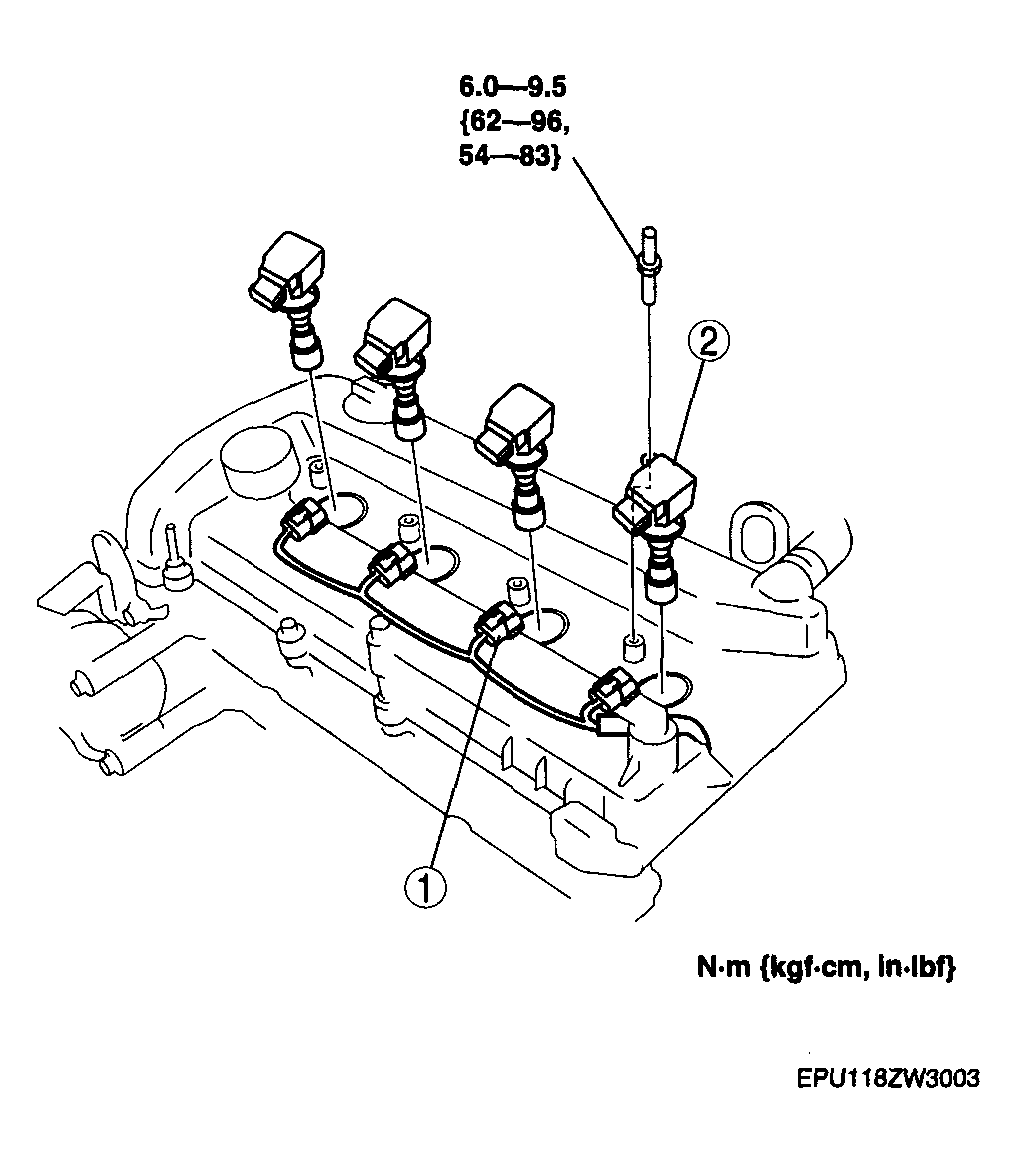

Fig 1: Ignition Coil & Torque Specification
Courtesy of MAZDA MOTORS CORP.
