Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

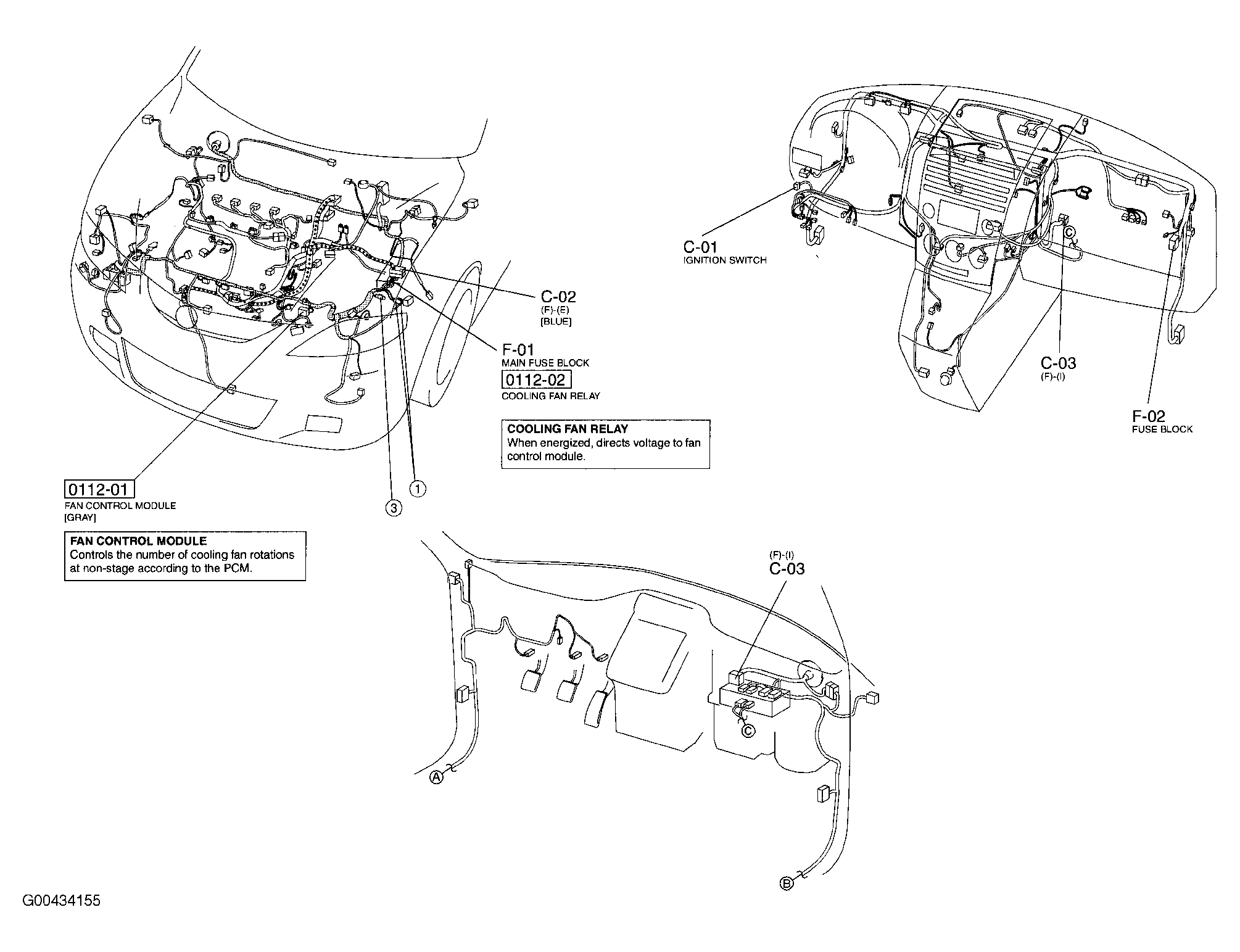

Fuse Block Behind right end of dash. See Figure.
Main Fuse Block Left side of engine compartment. See Figure.
