Selector Lever Component Installation Note

Tighten the nut in the order as shown in the figure.
Tightening torque

15.7-22.5 N.m

{1.6-2.2 kgf.m, 11.6-16.5 ft.lbf}

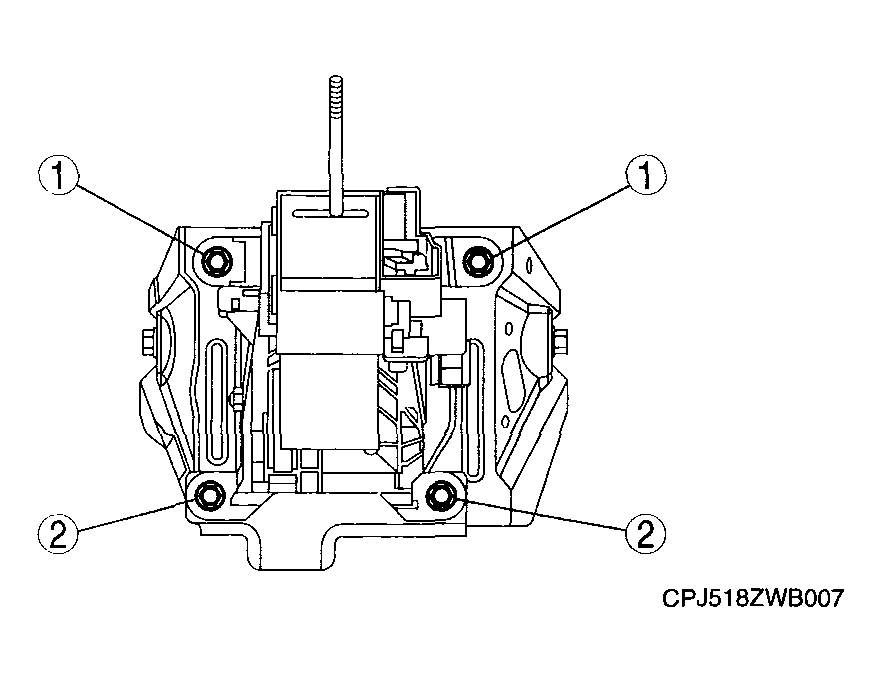

Fig 1: Selector Lever Mounting Nut Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
