Center Panel Unit Removal/Installation: Notes
- Disconnect the negative battery cable.
- Remove the glove compartment. (See
GLOVE COMPARTMENT REMOVAL/INSTALLATION.
)
- Remove the console. (See
CONSOLE REMOVAL/INSTALLATION.
)

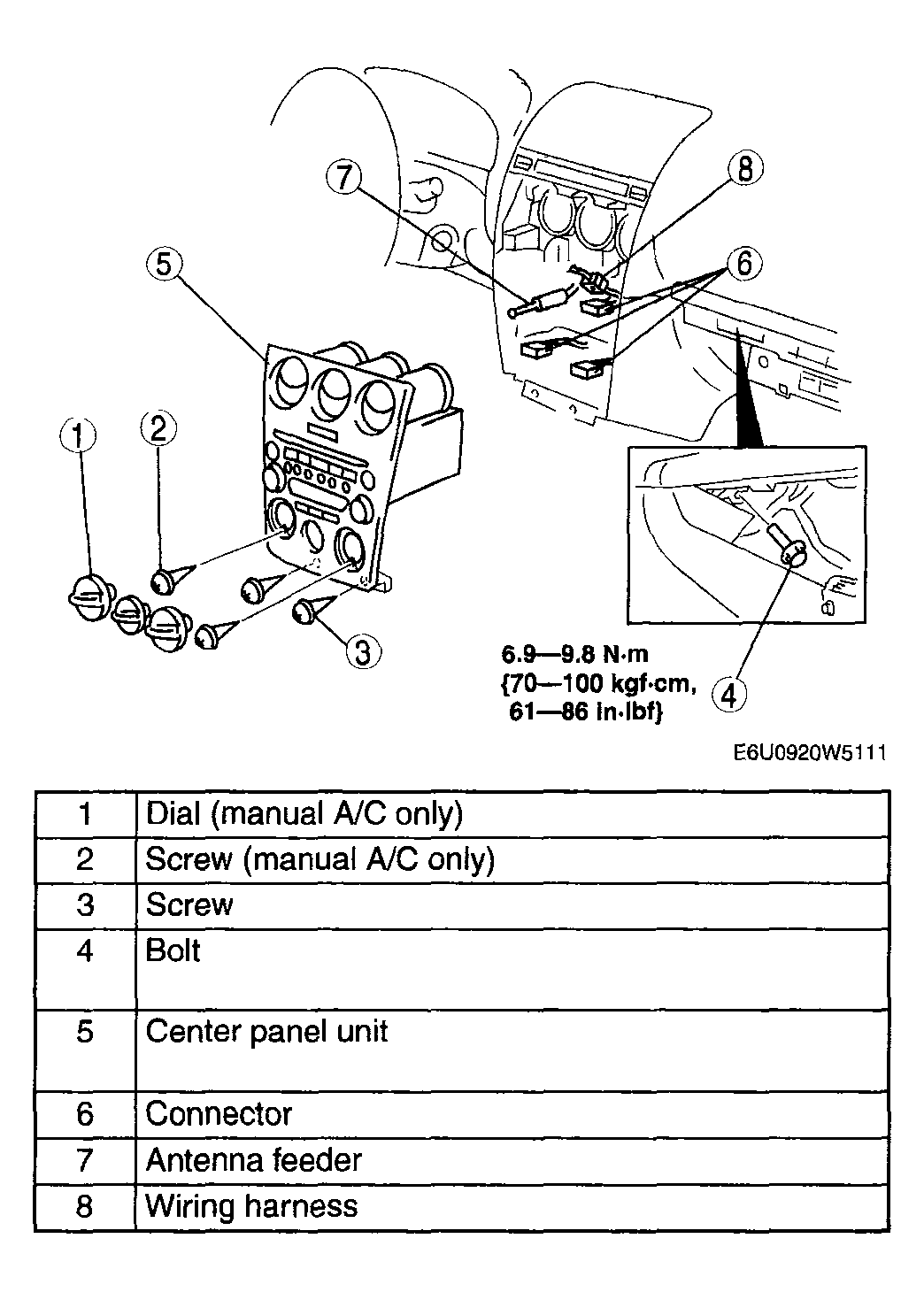

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
CAUTION:
- Make certain that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the harness or the antenna feeder is caught between the unit and dashboard, it may cause trouble or malfunctions.
