LCD Unit Removal/Installation: Notes

Disconnect the negative battery cable.
Remove the center panel module. (See CENTER PANEL UNIT REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.

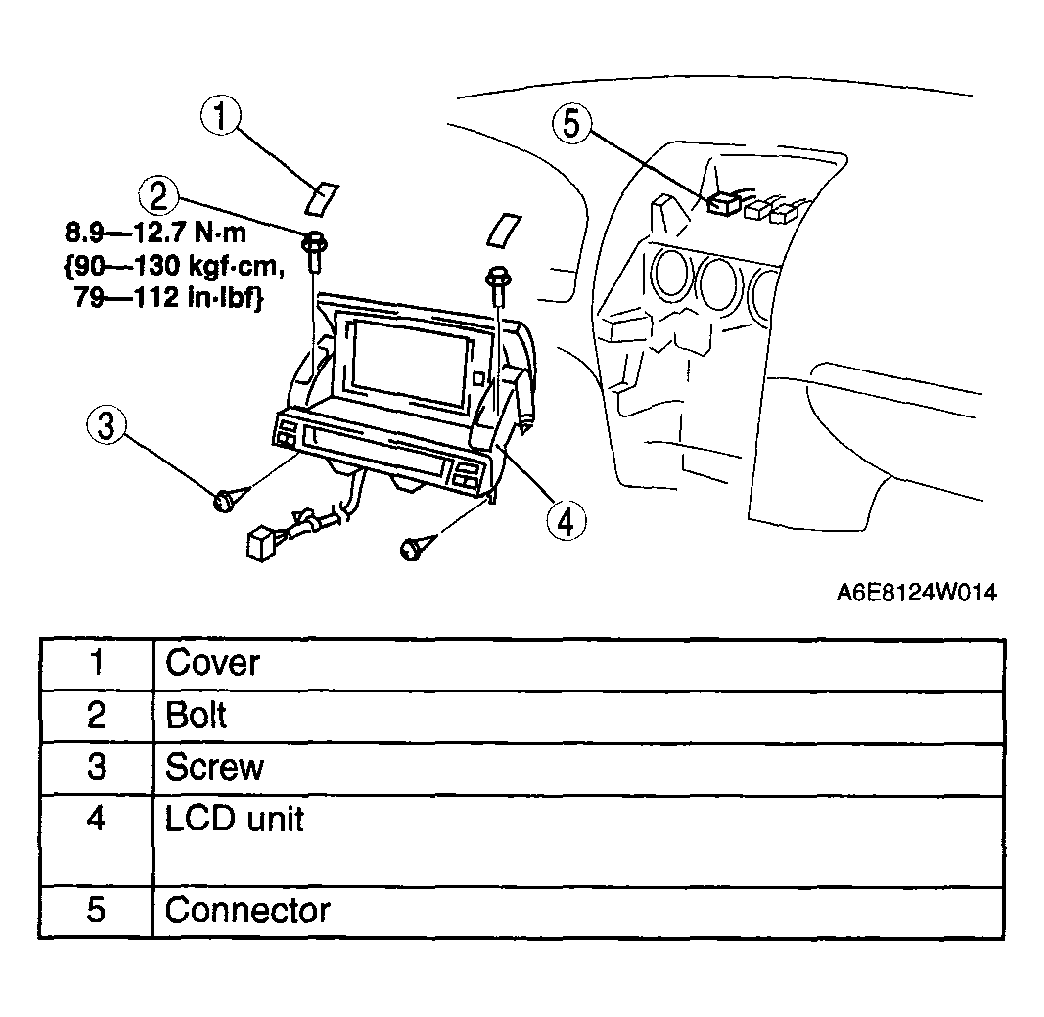

Fig 1: LCD Unit & Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
