DTC B1093 [Advanced Keyless System]: Notes

DTC B1093 DETECTION CONDITION AND POSSIBLE CAUSE

DTC B1093	Unprogrammed steering lock unit.
DETECTION CONDITION	Unprogrammed steering lock unit.

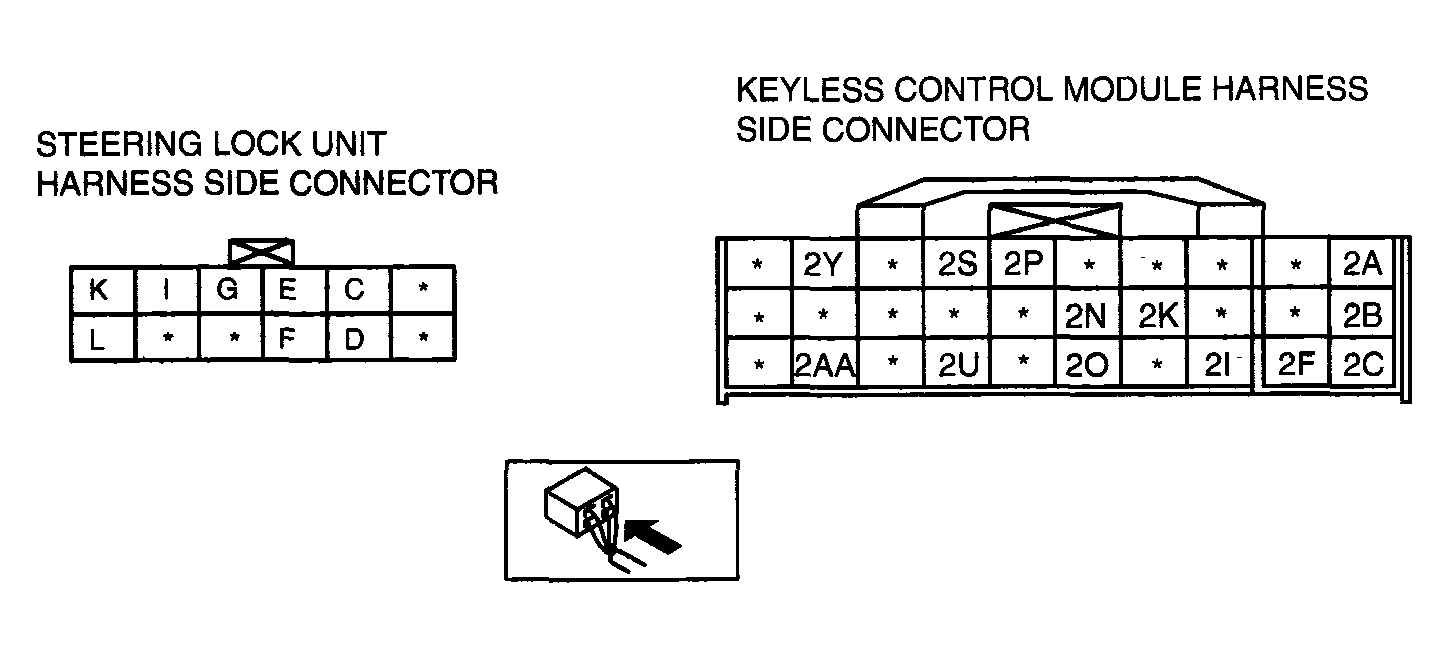

POSSIBLE CAUSE	Steering lock unit malfunction Open or short circuit in wiring harness between keyless control module and steering lock unit Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
