DTC B112A [Advanced Keyless System]: Notes

DTC B112A DETECTION CONDITION AND POSSIBLE CAUSE

DTC B1129 Keyless antenna (interior, front)
DETECTION CONDITION  Keyless antenna dose not operated.
POSSIBLE CAUSE
  • Keyless antenna (interior, front) malfunction
  • Open or short circuit in wiring harness between keyless control module and keyless antenna
  • Keyless control module malfunction

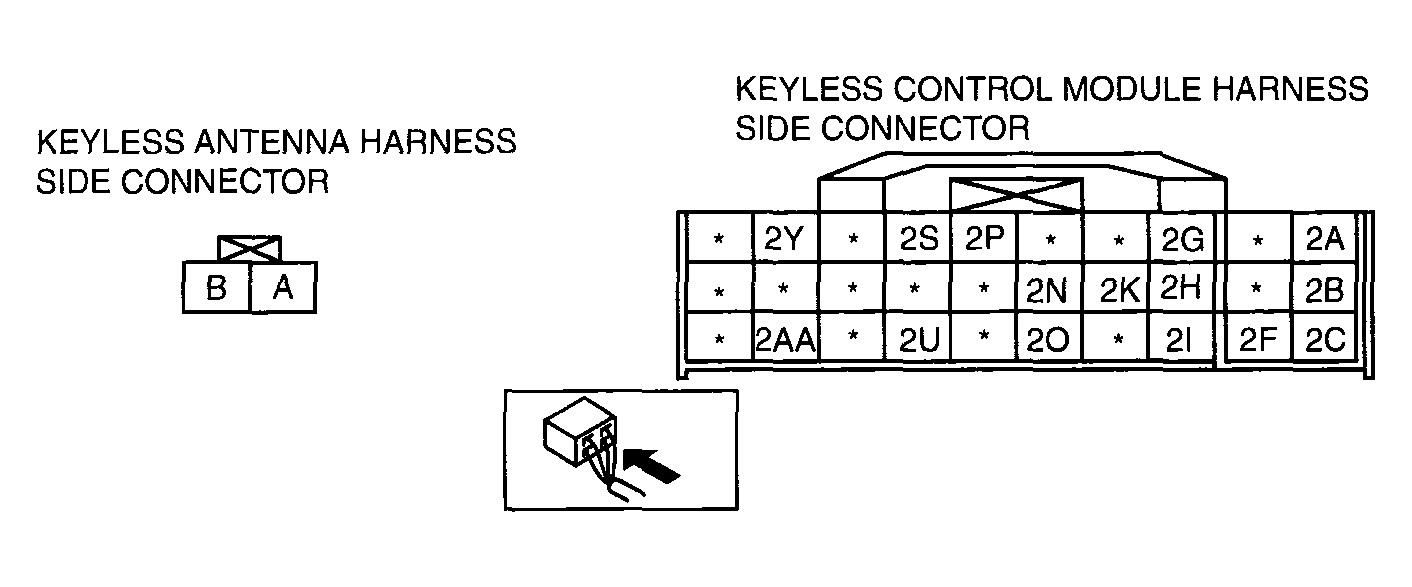

G04327040Courtesy of MAZDA MOTORS CORP.
