Coil Installation Note

  1. Install the hole of coil to the tab of steering lock.
  2. Install the hook of coil to the steering lock.

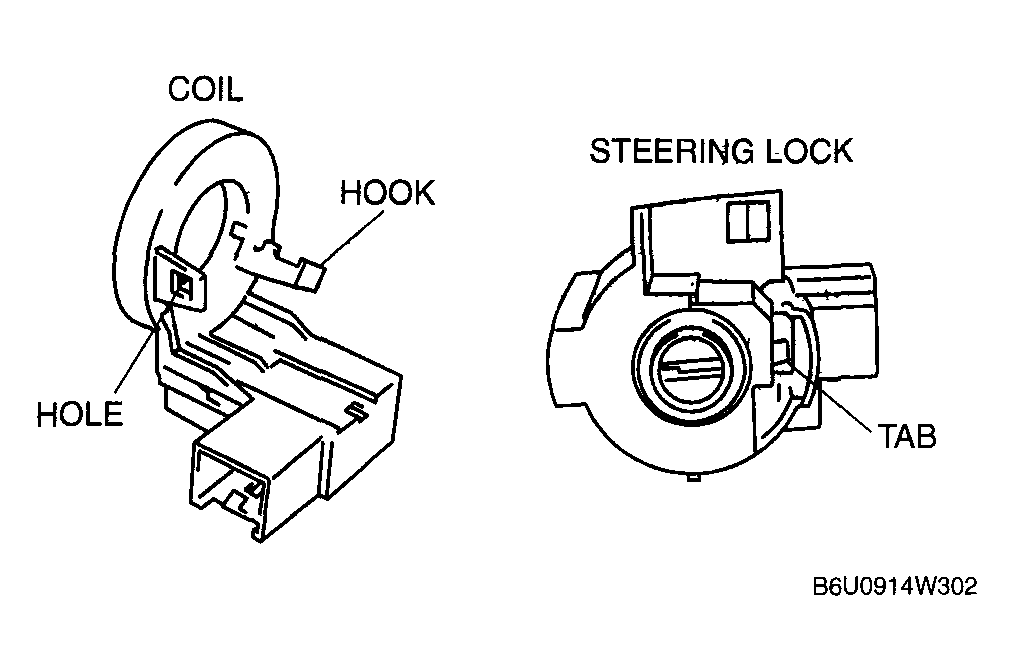

    Fig 1: Steering Lock
    G04327374Courtesy of MAZDA MOTORS CORP.
