Symptom Troubleshooting (Advanced Keyless System)
›
Keyless Entry System Wiring Diagram [Advanced Keyless System]
Keyless Entry System Wiring Diagram [Advanced Keyless System]

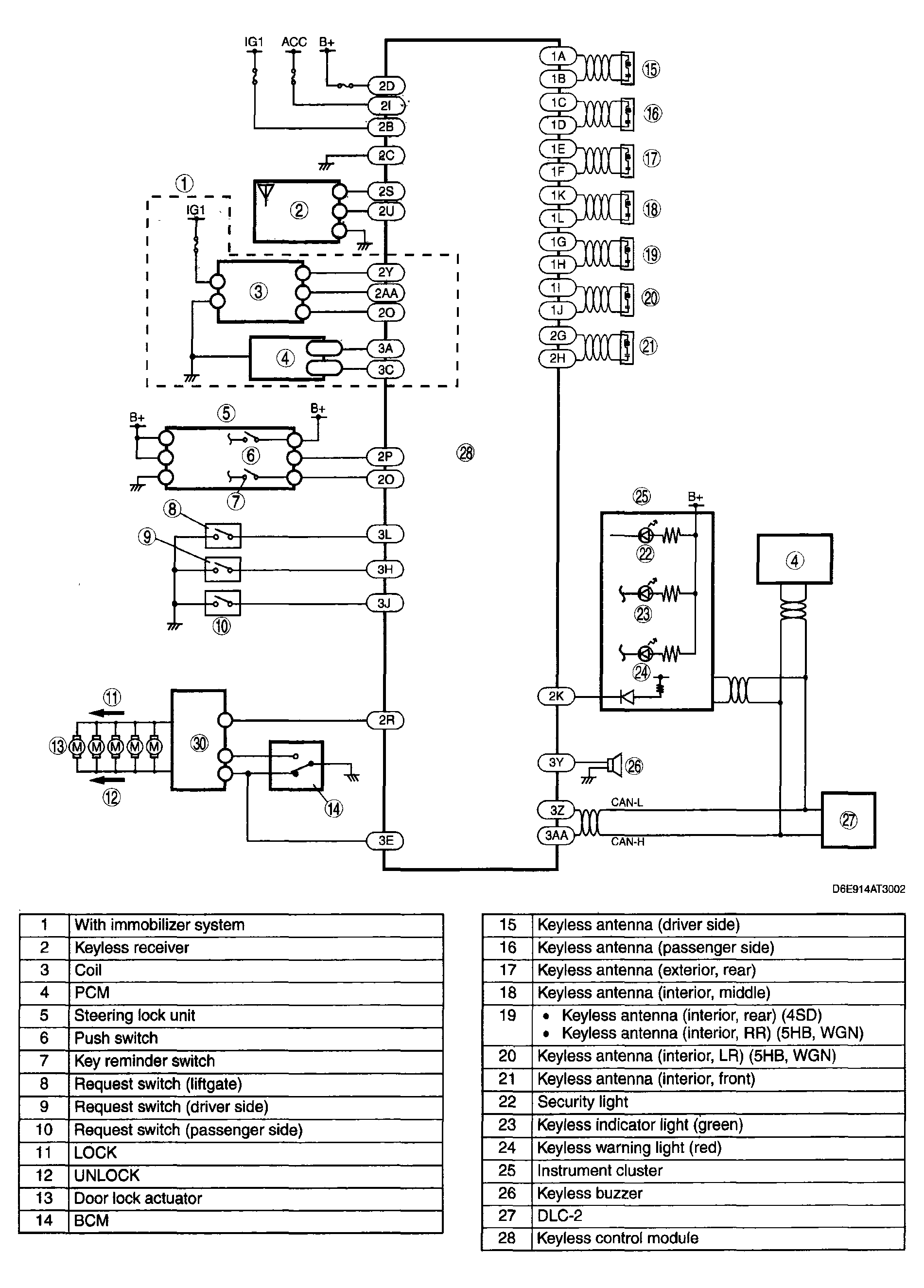

Fig 1: Keyless Entry System - Wiring Diagram (Advanced Keyless System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
