Symptom Troubleshooting (Keyless Entry System)
›
Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram

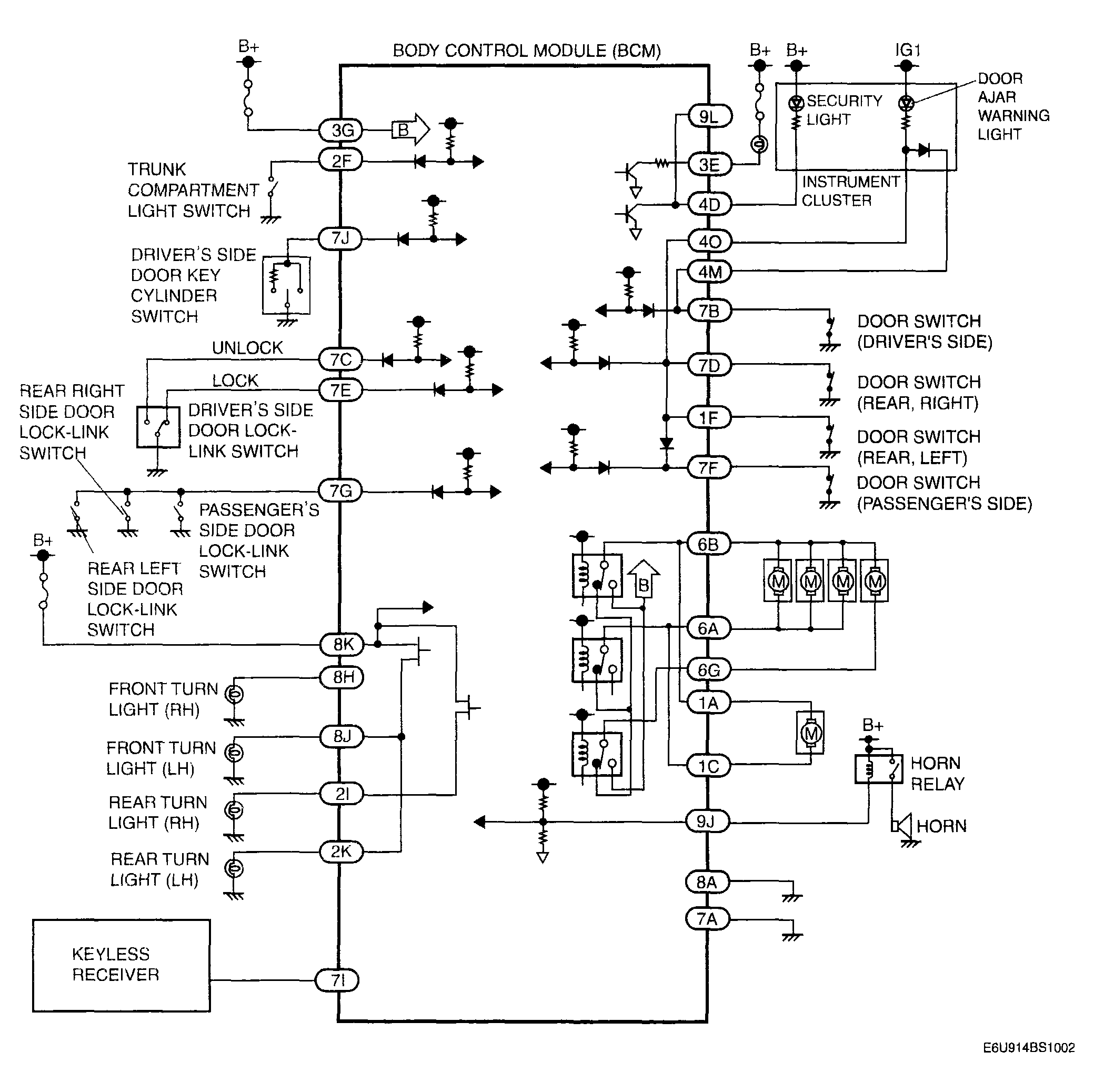

Fig 1: Keyless Entry System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
