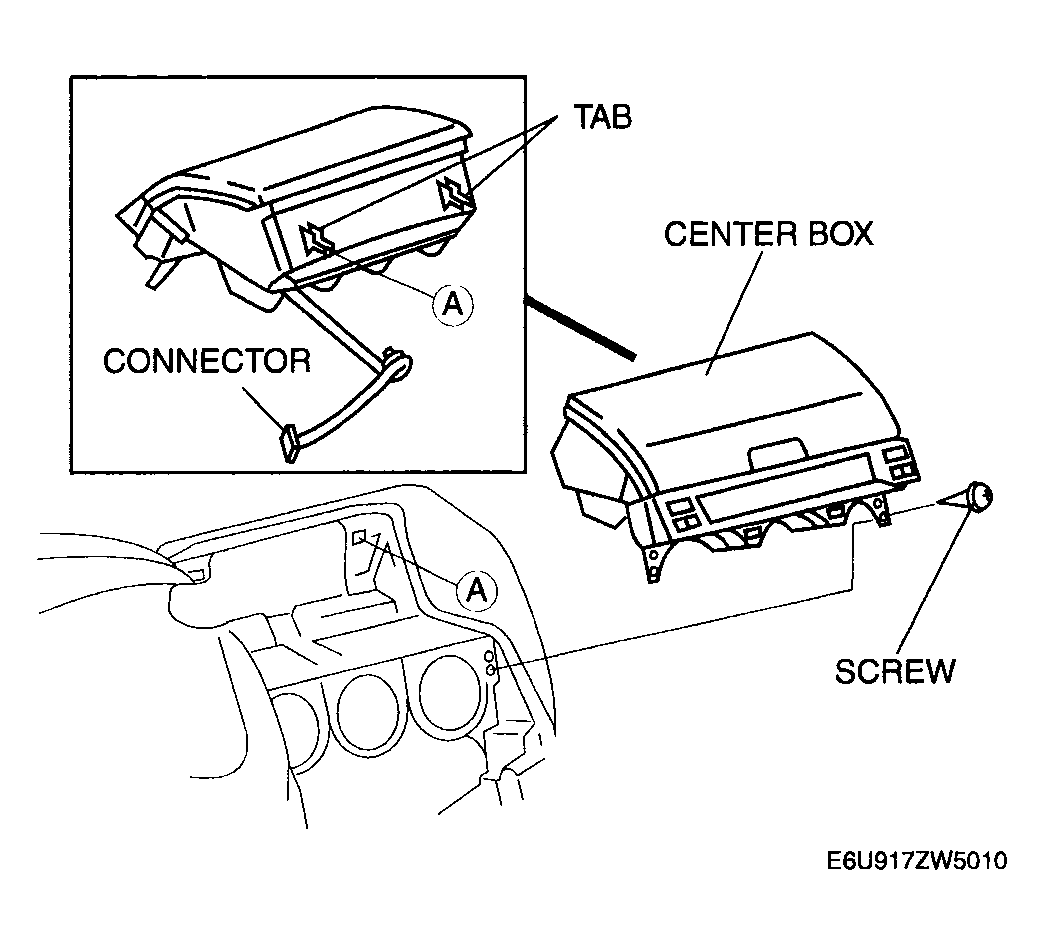

Center Box Removal/Installation
- Disconnect the negative battery cable.
- Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION. )
- Remove the screws.
- Pull the center box outward, then disengage the tabs.
- Disconnect the information display connector.
- Install in the reverse order of removal.
