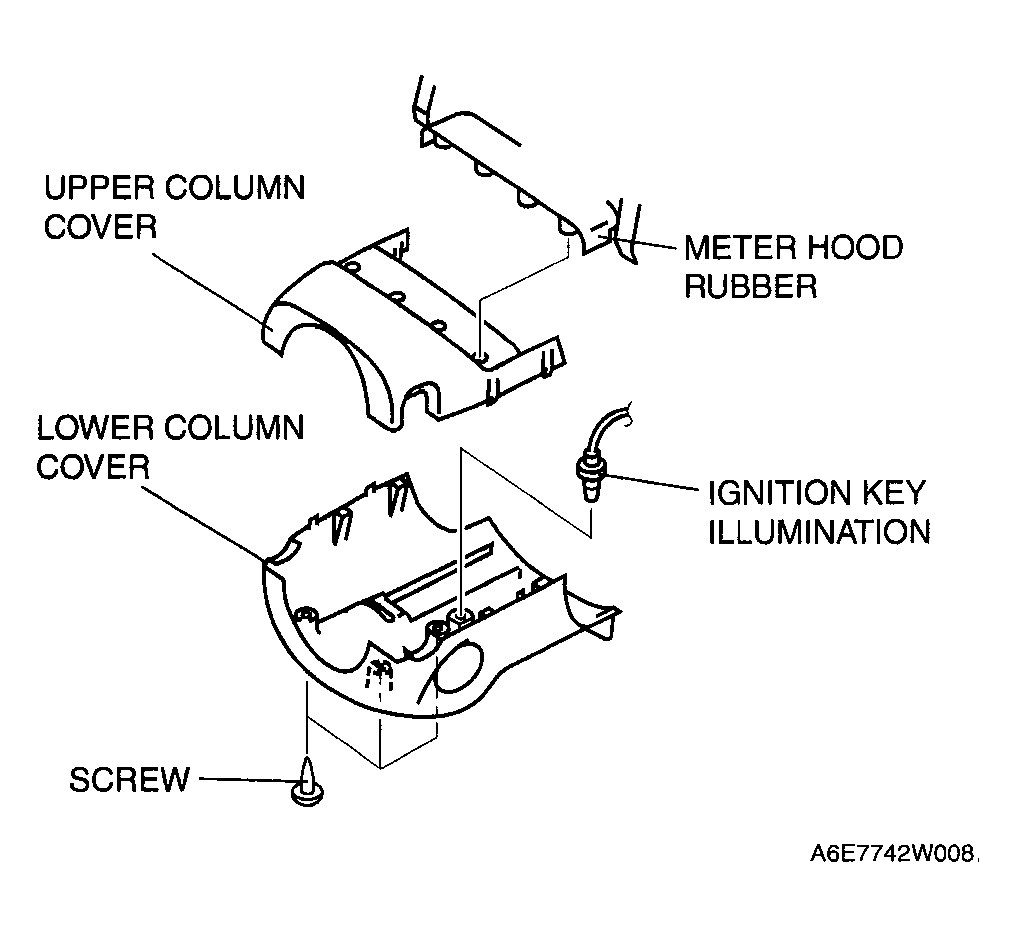

Column Cover Removal/Installation
- Detach the fitting parts of the upper column cover from the meter hood rubber.
- Remove the upper column cover.
- Remove the screws.
- Remove the lower column cover.
- Remove the ignition key illumination.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
