Lower Panel Removal/Installation

  1. Remove the hood release lever. (See HOOD REMOVAL/INSTALLATION [EXCEPT L3 WITH TC]. ) (See HOOD REMOVAL/INSTALLATION [L3 WITH TC]. )
  2. Remove the screws.
  3. Pull the lower panel outward, disengage clips A and tabs B from the dashboard, and remove the lower panel.
  4. Install in the reverse order of removal.

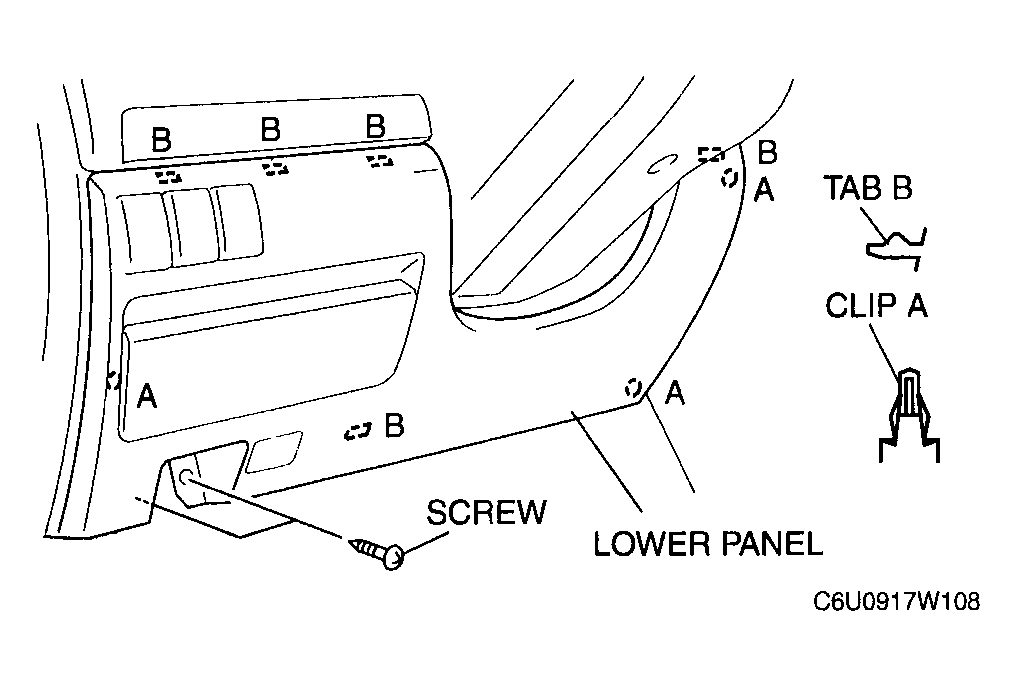

    Fig 1: Lower Panel
    G04327450Courtesy of MAZDA MOTORS CORP.
