Fuse Block Removal/Installation

Disconnect the negative battery cable.
Remove the left-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION. )
Remove in the order indicated in the table.
Install in the reverse order of removal.

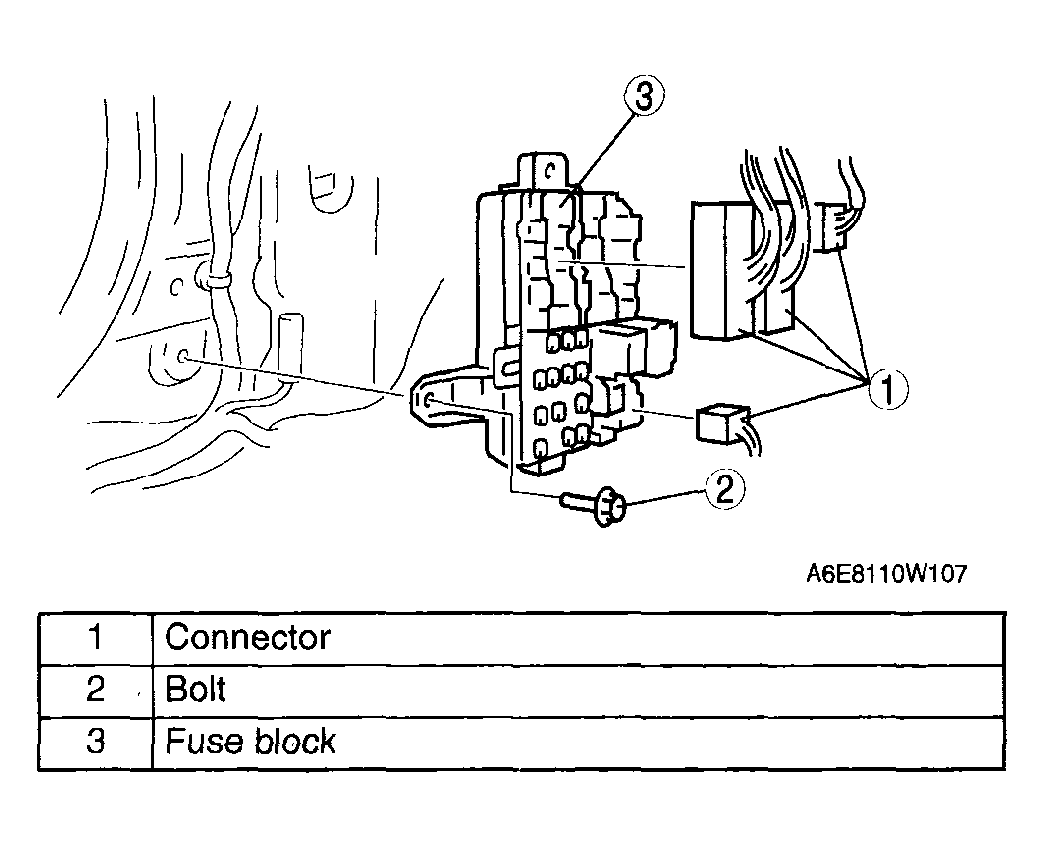

Fig 1: View Of Fuse Block
Courtesy of MAZDA MOTORS CORP.
