Bolt Removal Note

Press and remove the tabs on the main fuse block at the positions indicated by the arrows.

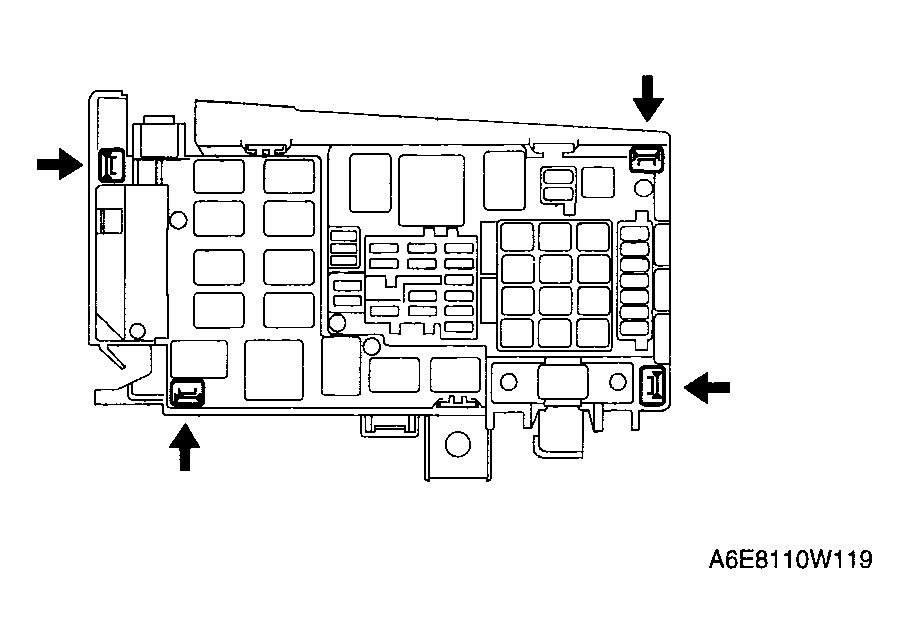

Fig 1: View Of Tabs On Main Fuse Block
Courtesy of MAZDA MOTORS CORP.
Lift up the main fuse block and remove the bolts.

Fig 2: Lifting Up Main Fuse Block
Courtesy of MAZDA MOTORS CORP.
