Main Fuse Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

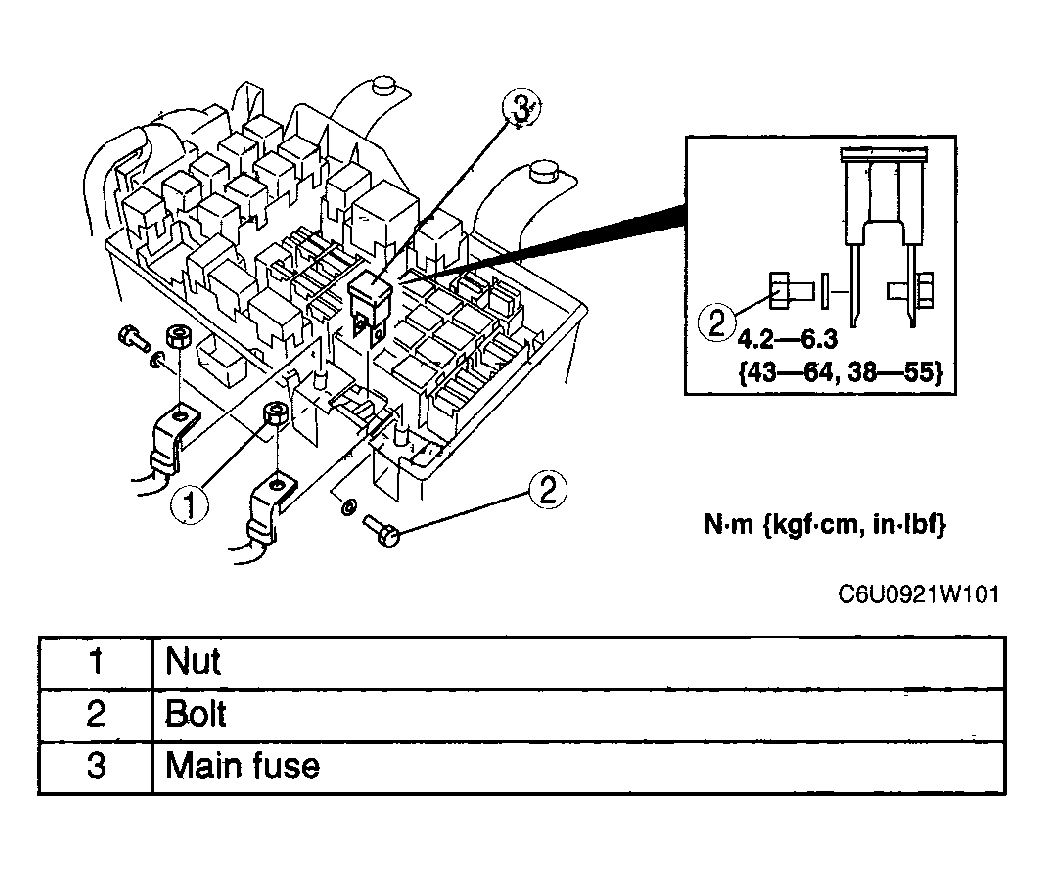

    Fig 1: Main Fuse Block & Torque Specification
    G04327702Courtesy of MAZDA MOTORS CORP.
