DTC C1119 [Abs/TCS]: Notes

DTC C1119 [ABS/TCS] DETECTION CONDITION AND POSSIBLE CAUSES

DTC C1119 Engine control system, torque reduction inhibit signal line
DETECTION CONDITION
  • Engine RPM information through CAN is out of specification or invalid value.
  • Throttle information through CAN is out of specification or invalid value.
  • Received control prohibition signal from PCM through CAN.
POSSIBLE CAUSE
  • Malfunction of PCM

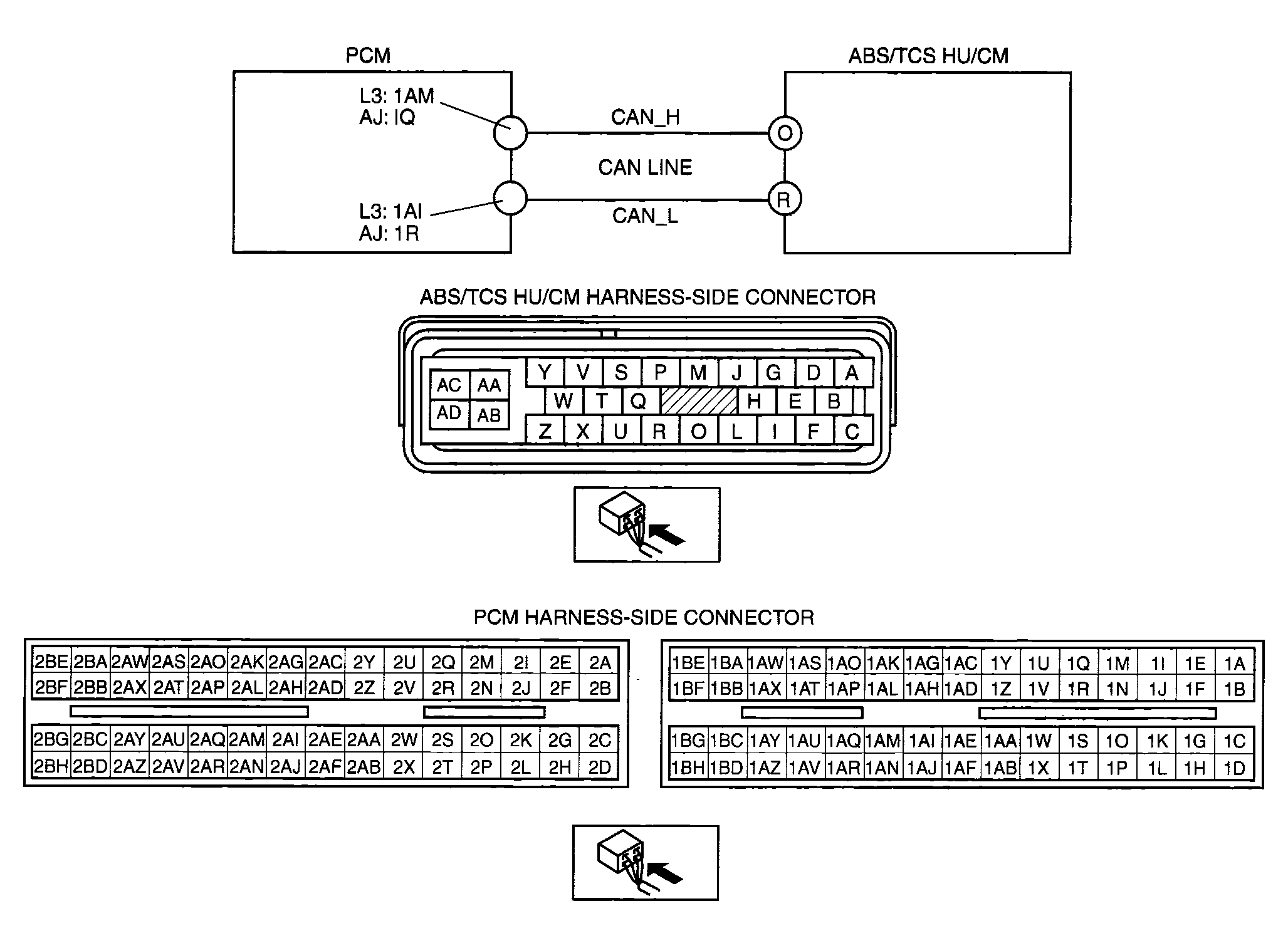

G04325855Courtesy of MAZDA MOTORS CORP.
