DTC B1627 [DSC]: Notes
DTC B1627 [DSC] DETECTION CONDITION AND POSSIBLE CAUSES
| DTC B1627 |
Reverse signal |
| DETECTION CONDITION |
- Reverse signal is input for 10 s or more
while driving at a vehicle speed of 65 km/h {40 mph}
|
| POSSIBLE CAUSE |

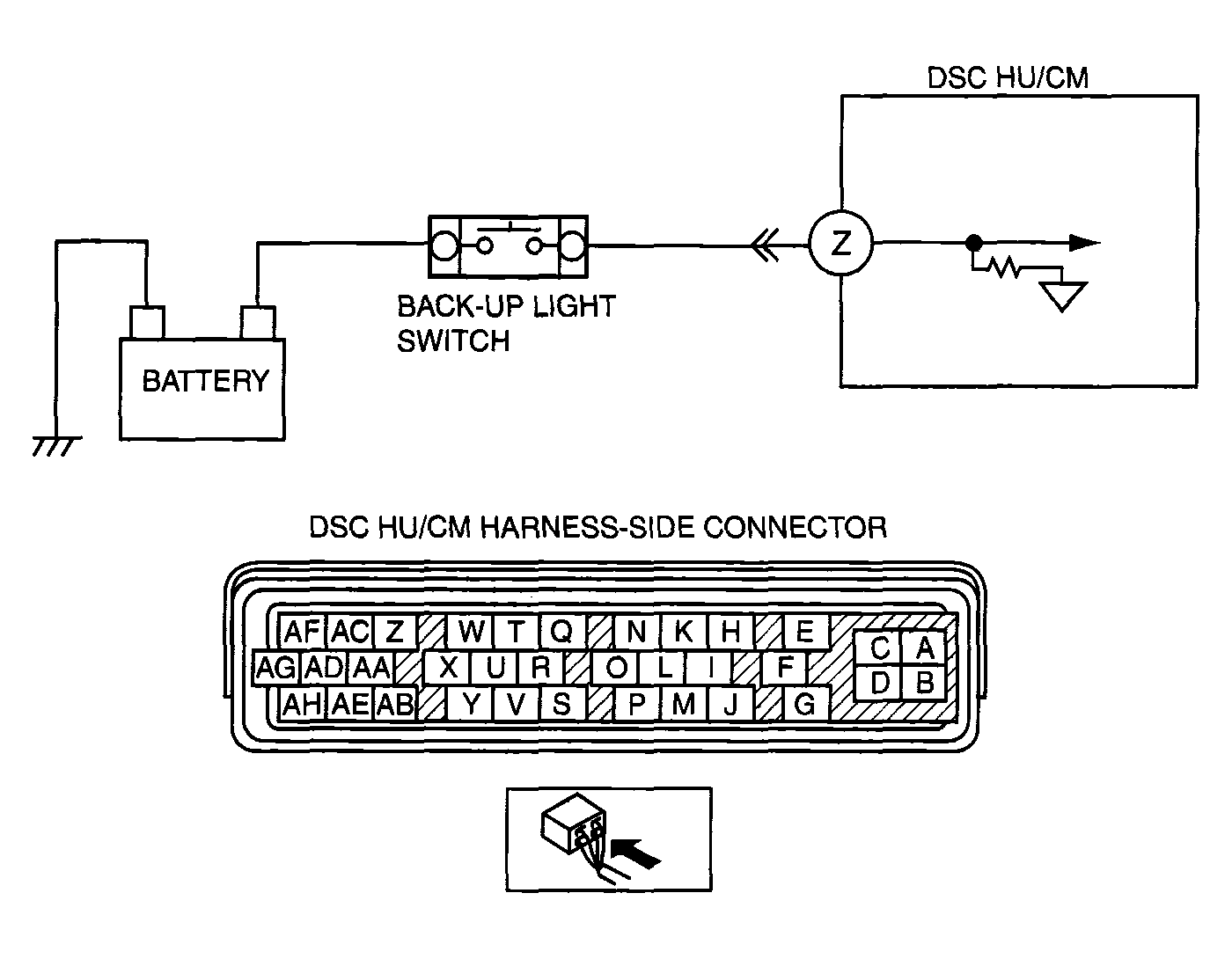

- Short to power circuit in harness between DSC HU/CM terminal Z and back-up light switch
|
 Courtesy of MAZDA MOTORS CORP.
|
