Starter Installation Note

NOTE: If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:

Peel off the insulator from the starter completely using a scraper.

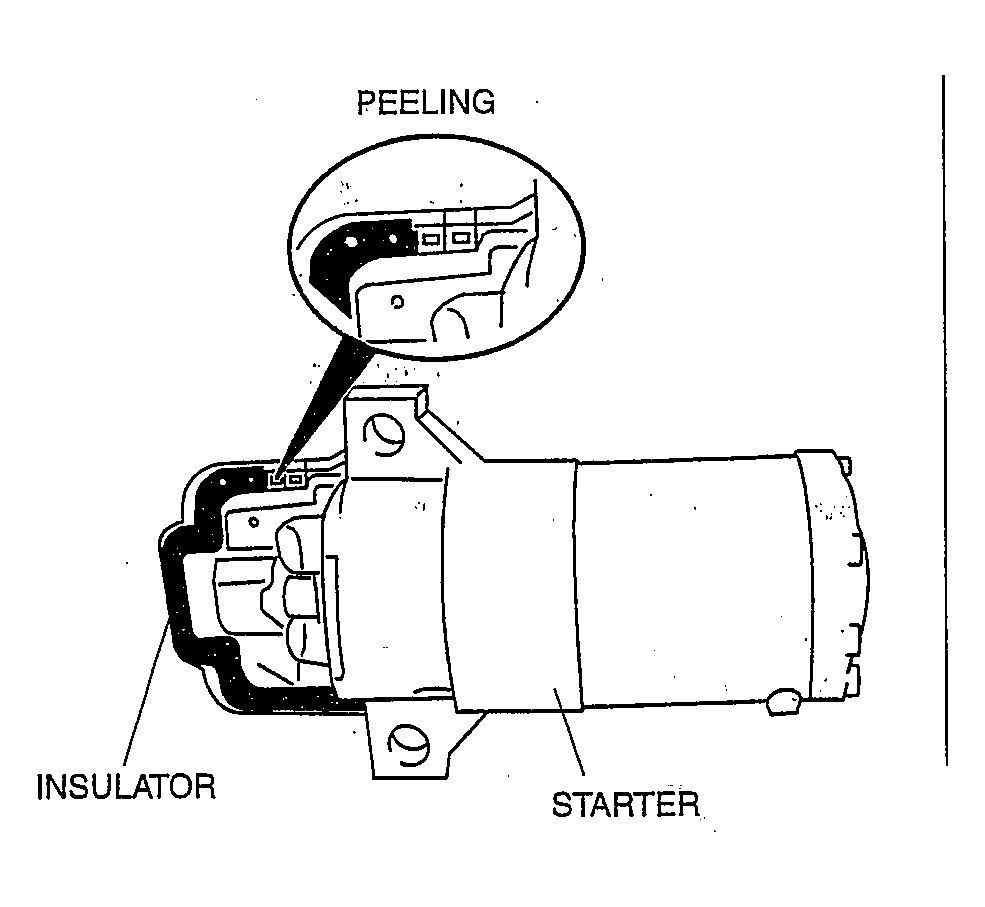

Fig 1: View Of Starter & Insulator
Courtesy of MAZDA MOTORS CORP.
Degrease the insulator attachment area.

Fig 2: View Of Starter & Insulator Attachment Area
Courtesy of MAZDA MOTORS CORP.
Attach a new insulator to the starter.

Fig 3: View Of Starter With New Insulator
Courtesy of MAZDA MOTORS CORP.
